The ADS1246IPW requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1246IPW's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, ensure proper filtering and shielding to minimize noise, and consider using a dedicated analog power supply.
The ADS1246IPW's digital output data should be handled carefully to avoid data corruption. Use a first-in-first-out (FIFO) buffer or a dedicated DMA channel to handle the data stream. Ensure the receiving device can handle the data rate, and consider using a data validation mechanism to detect errors.
To ensure the ADS1246IPW's accuracy and linearity, calibrate the device regularly, use a high-quality voltage reference, and maintain a stable power supply. Additionally, consider using a temperature sensor to compensate for temperature-related errors.
When designing the power supply for the ADS1246IPW, consider the following: use a low-noise, low-dropout regulator, ensure a stable voltage supply, and add decoupling capacitors close to the device's power pins. Additionally, consider using a separate analog power supply to minimize digital noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1246IPW Overview

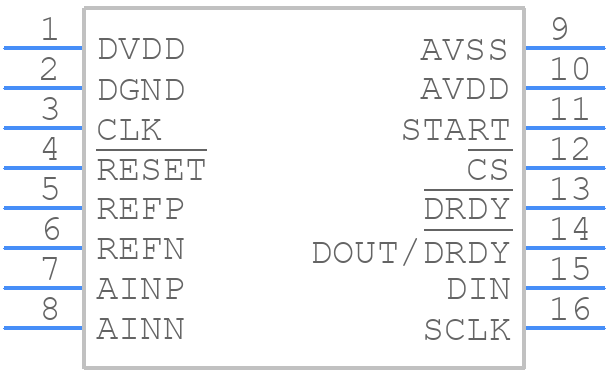

Use the download button to access the ADS1246IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
