The ADS1256IDBR requires careful PCB layout and routing to minimize noise and ensure accurate conversions. TI recommends following the layout guidelines in the datasheet, including keeping analog and digital traces separate, using a solid ground plane, and minimizing trace lengths.
To optimize the ADS1256IDBR's performance, consider factors such as input signal frequency, amplitude, and impedance. Adjust the ADC's gain, offset, and filter settings accordingly. Additionally, ensure proper power supply decoupling and noise filtering to minimize external interference.
To ensure proper operation, power up the ADS1256IDBR in the following sequence: 1) Power up the analog supply (AVDD), 2) Power up the digital supply (DVDD), and 3) Apply the clock signal. This sequence helps prevent latch-up and ensures proper initialization.
The ADS1256IDBR requires a one-time calibration process to ensure accurate conversions. Follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the ADC's internal registers accordingly.
Common pitfalls to avoid when using the ADS1256IDBR include: 1) Insufficient power supply decoupling, 2) Inadequate noise filtering, 3) Incorrect clock signal configuration, 4) Failure to follow the recommended layout and routing guidelines, and 5) Inadequate calibration or neglecting to recalibrate after changes to the input signal or operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1256IDBR Overview

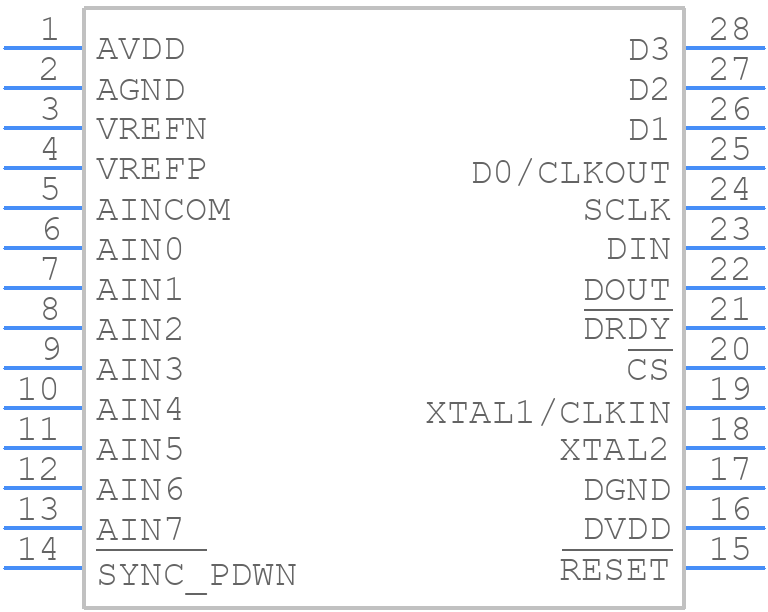

Use the download button to access the ADS1256IDBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
