The ADS1256IDBRG4 requires careful layout and routing to minimize noise and ensure accurate conversions. TI recommends using a 4-layer PCB with a solid ground plane, and keeping analog and digital traces separate. Additionally, use short, direct traces for the analog inputs and avoid crossing digital and analog traces.
The ADS1256IDBRG4 has a built-in calibration feature, but you may need to optimize the gain and offset for your specific application. TI recommends using the ADS1256's internal calibration feature and then fine-tuning the gain and offset using external calibration resistors or capacitors.
To ensure proper operation, TI recommends powering up the ADS1256IDBRG4 in the following sequence: VDD, AVDD, and then DVDD. This sequence helps prevent latch-up and ensures that the internal voltage regulators are properly enabled.
The ADS1256IDBRG4's high-speed digital outputs require careful handling to prevent signal degradation and electromagnetic interference (EMI). TI recommends using a low-impedance transmission line, such as a 50-ohm microstrip, and terminating the lines with a 50-ohm resistor to prevent reflections.
To synchronize multiple ADS1256IDBRG4 devices, TI recommends using a common clock source and synchronizing the devices using the SYNC pin. This ensures that all devices are sampling at the same time, which is critical in applications such as multi-channel data acquisition.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1256IDBRG4 Overview

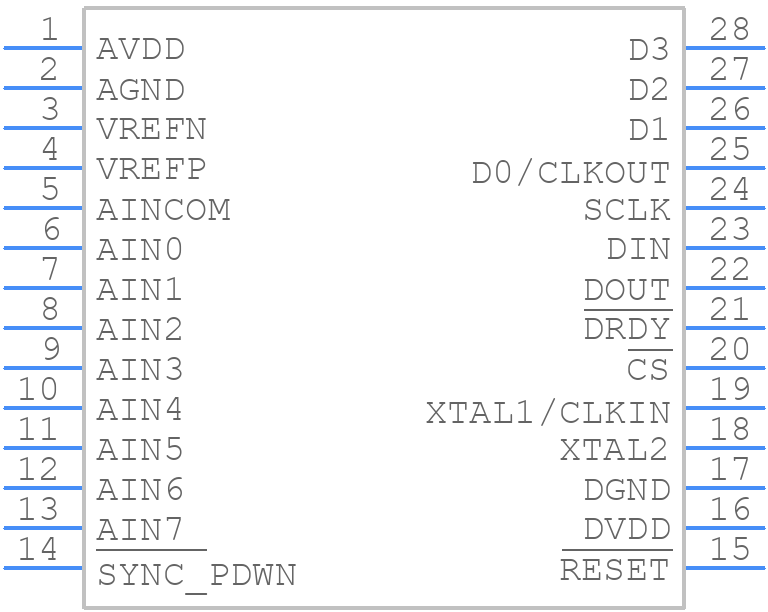

Use the download button to access the ADS1256IDBRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
