The ADS1256IDBTG4 requires careful PCB layout and routing to minimize noise and ensure accurate conversions. TI recommends using a 4-layer PCB with a solid ground plane, separating analog and digital signals, and using shielded cables for analog inputs.
The ADS1256IDBTG4 has a built-in calibration mechanism, but you may need to adjust the gain and offset calibration for your specific application. TI recommends using the ADS1256's built-in calibration commands and adjusting the gain and offset values based on your system's requirements.
To ensure proper operation, TI recommends powering up the ADS1256IDBTG4 in the following sequence: AVDD, DVDD, and then CLKIN. This sequence helps prevent latch-up and ensures proper initialization of the device.
The ADS1256IDBTG4 outputs 24-bit data in two's complement format. You'll need to handle the data accordingly in your microcontroller or FPGA, taking into account the data format, byte ordering, and any necessary data processing or filtering.
The ADS1256IDBTG4 has a maximum junction temperature of 150°C. Ensure good thermal design practices, such as providing adequate heat sinking, using thermal vias, and minimizing thermal resistance to prevent overheating and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1256IDBTG4 Overview

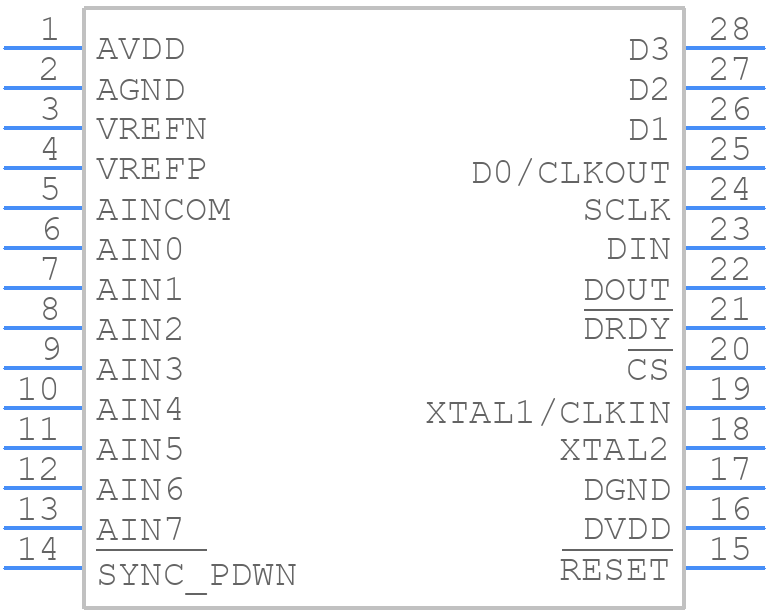

Use the download button to access the ADS1256IDBTG4 schematic symbol, PCB footprint, and 3D model.
