A good PCB layout for the ADS4149IRGZT involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the ADC and the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the clock input for the ADS4149IRGZT, use a low-jitter clock source, such as a crystal oscillator or a high-quality clock generator. Ensure the clock signal is properly terminated and routed to minimize noise and reflections. A clock frequency of 20-40 MHz is recommended for optimal performance.
The recommended analog input range for the ADS4149IRGZT is 0 to VREF (typically 2.5V or 3.3V). However, the device can tolerate input voltages up to 5V without damage. It's essential to ensure the input signal is within the specified range to maintain optimal performance and prevent distortion.
The ADS4149IRGZT outputs 14-bit digital data in a parallel format. To handle the digital output data, use a microcontroller or FPGA with a parallel interface. Ensure the receiving device can handle the data transfer rate of up to 40 MSPS. Use a suitable interface protocol, such as SPI or parallel bus, to transfer the data.
The power consumption of the ADS4149IRGZT depends on the operating frequency and the voltage supply. At a 3.3V supply and a 20 MSPS sampling rate, the typical power consumption is around 120 mW. However, this can vary depending on the specific application and operating conditions.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS4149IRGZT Overview

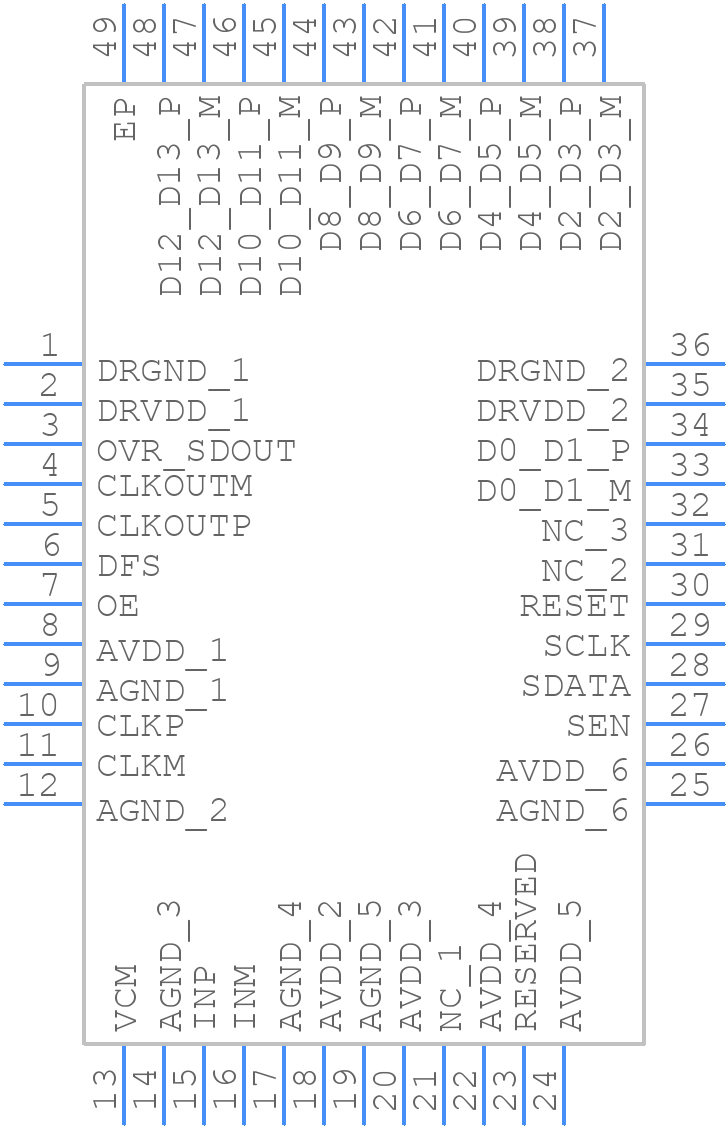

Use the download button to access the ADS4149IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS41,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
