ADS5500IPAP - Texas Instruments

ADS5500IPAP Details

• Manufacturer Part Number:

  ADS5500IPAP

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

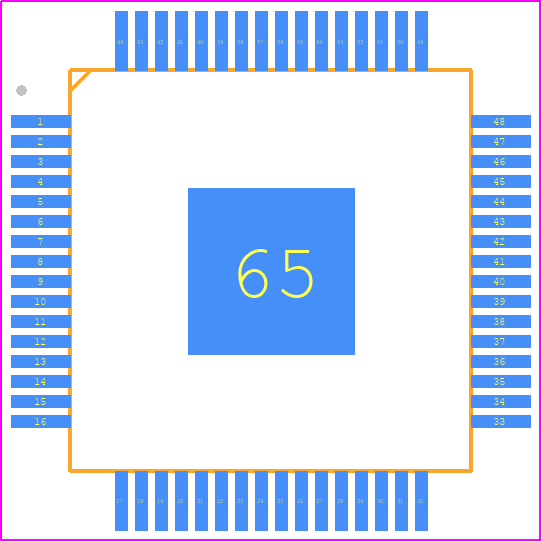

• Part Package Code:

  QFP

• Package Description:

  HTFQFP-64

• Pin Count:

  64

• Country Of Origin:

  Taiwan

• ECCN Code:

  3A991.C.3

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  Peak-to-peak input voltage range(V) : 2.3

• Analog Input Voltage-Max:

  2.3 V

• Analog Input Voltage-Min:

  -2.3 V

• Converter Type:

  ADC, PROPRIETARY METHOD

• JESD-30 Code:

  S-PQFP-G64

• JESD-609 Code:

  e4

• Length:

  10 mm

• Linearity Error-Max (EL):

  0.0305%

• Moisture Sensitivity Level:

  3

• Number of Analog In Channels:

  1

• Number of Bits:

  14

• Number of Functions:

  1

• Number of Terminals:

  64

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  BINARY, 2S COMPLEMENT BINARY

• Output Format:

  PARALLEL, WORD

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTFQFP

• Package Equivalence Code:

  TQFP64,.47SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  125 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  1.2 mm

• Supply Current-Max:

  265 mA

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  10 mm
