FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Sample Rate:
125 MHz
Sample and Hold / Track and Hold:
SAMPLE
Seated Height-Max:
1.2 mm
Supply Current-Max:
265 mA
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
ADS5500MPAPEP Frequently Asked Questions (FAQs)
A 4-layer PCB with a solid ground plane, separate analog and digital power planes, and careful routing of analog and digital signals is recommended. TI provides a reference design and layout guidelines in the datasheet and application notes.
The AFE can be optimized by selecting the appropriate gain, filter settings, and input impedance to match the sensor or signal source. TI provides a software tool, the ADS5500 Evaluation Module (EVM), to help optimize the AFE for specific applications.
The maximum sampling rate of the ADS5500MPAPEP is 100 MSPS, but this can be limited by the analog input bandwidth, filter settings, and system clock frequency. The actual achievable sampling rate depends on the specific application and system design.
Data integrity can be ensured by using error detection and correction mechanisms, such as CRC and ECC, and implementing data validation and verification protocols in the system design. Additionally, following proper PCB design and layout guidelines can help minimize noise and interference.
Yes, the ADS5500MPAPEP can be used in multi-channel or simultaneous sampling applications. However, this requires careful system design, synchronization, and data handling to ensure accurate and reliable data acquisition.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS5500MPAPEP Overview

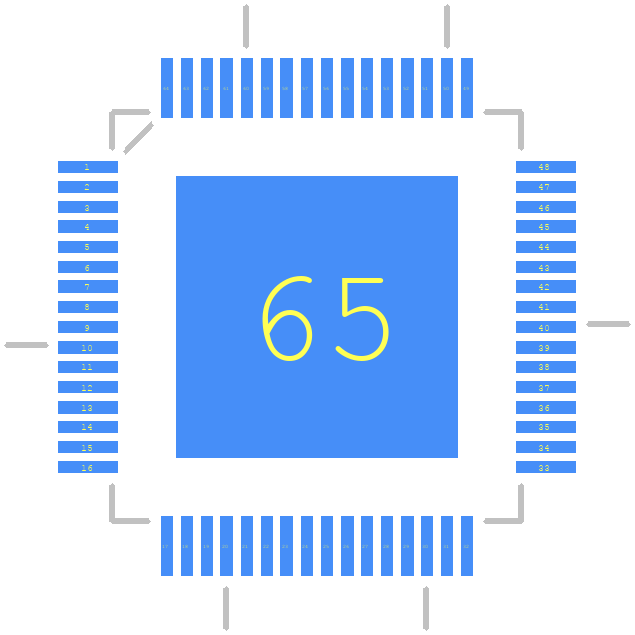

Use the download button to access the ADS5500MPAPEP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS55,
or try a keyword search, such as Analog to Digital Converters
