FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Sample Rate:
125 MHz
Sample and Hold / Track and Hold:
SAMPLE
Screening Level:
TS 16949
Seated Height-Max:
1.2 mm
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
ADS5500IPAPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the ADS5500IPAPR evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The ADS5500IPAPR has a flexible AFE that can be optimized for specific applications by adjusting the gain, bandwidth, and filtering. Texas Instruments provides application notes and design tools to help engineers optimize the AFE for their specific use case.
The ADS5500IPAPR can achieve data rates of up to 1 GSPS, but the actual data rate may be limited by the system's clock frequency, analog bandwidth, and digital processing capabilities.
The ADS5500IPAPR has built-in error detection and correction mechanisms, such as CRC and ECC, to ensure data integrity. Engineers should also implement proper data handling and processing techniques, such as data buffering and synchronization, to prevent errors.
The power consumption of the ADS5500IPAPR varies depending on the operating mode and frequency. Texas Instruments provides power consumption estimates in the datasheet, and engineers can optimize power consumption by using power-down modes, reducing clock frequencies, and optimizing the analog front-end.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS5500IPAPR Overview

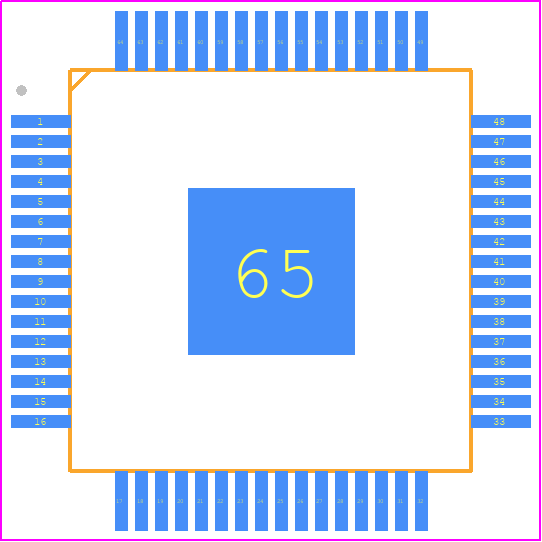

Use the download button to access the ADS5500IPAPR schematic symbol, PCB footprint, and 3D model.
