ADS8028IRTJR - Texas Instruments

Description: Analog To Digital Converters (ADCs) 12 1M 8 SPI 2.7V~5.25V,1.65V~5.25V QFN-20 RoHS

Download ADS8028IRTJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

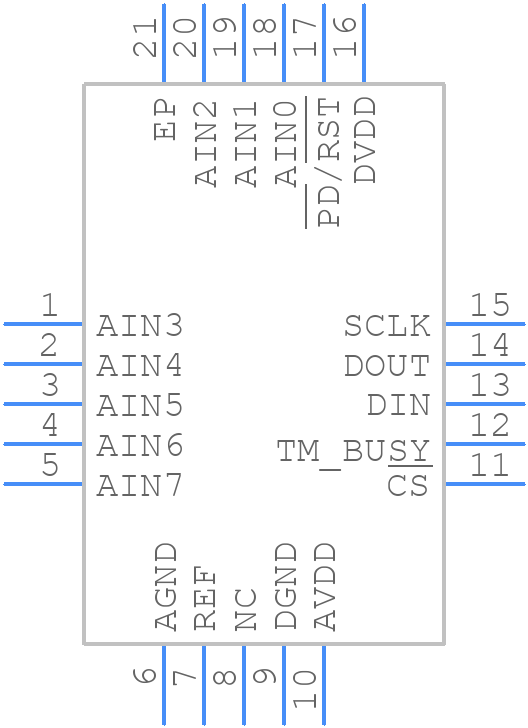

ADS8028IRTJR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8028IRTJR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTJ(S-PWQFN-N20
click to zoom
3D Models
ADS8028IRTJR - Texas Instruments - 3D model - Quad Flat No-Lead - RTJ(S-PWQFN-N20
click to zoom

ADS8028IRTJR Details

  • Manufacturer Part Number:

    ADS8028IRTJR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    0.7 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADS8028IRTJR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be routed close to the AGND plane, and the digital output traces should be routed away from the analog input traces. Additionally, decoupling capacitors should be placed close to the device.
  • The ADS8028IRTJR outputs 16-bit data in two's complement format. The recommended data processing flow is to perform a digital low-pass filter to remove high-frequency noise, followed by a gain and offset correction to adjust the output to the desired range.
  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD). During power-down, the sequence should be reversed. Additionally, the digital interface should be inactive during power-up and power-down to prevent incorrect operation.
  • The ADS8028IRTJR has an internal calibration circuit that can be used to adjust the gain and offset of the device. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve the desired output code. The calibration process should be performed at the operating temperature range of the device.
  • The ADS8028IRTJR has a SYNC input pin that can be used to synchronize the device with an external clock or trigger signal. The SYNC pin should be driven with a digital signal that meets the device's input requirements, and the device should be configured to use the external clock or trigger signal as the sampling clock.
