ADS8028IRTJT - Texas Instruments

Description: 12-bit, 8-channel, 1MSPS, SAR ADC with Internal Reference and Internal Temperature Sensor

Download ADS8028IRTJT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

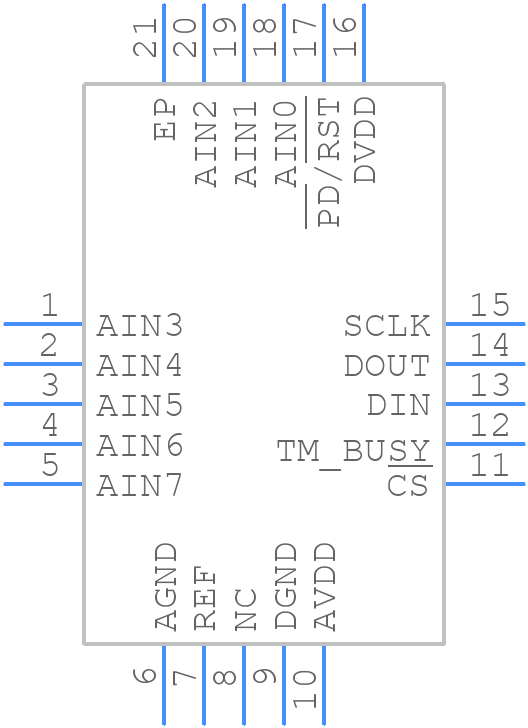

Symbol
ADS8028IRTJT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8028IRTJT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTJ (S-PWQFN-N20)-2020
click to zoom
3D Models
ADS8028IRTJT - Texas Instruments - 3D model - Quad Flat No-Lead - RTJ (S-PWQFN-N20)-2020
click to zoom

ADS8028IRTJT Details

  • Manufacturer Part Number:

    ADS8028IRTJT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN-20

  • Pin Count:

    20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    2.5 V

  • Conversion Time-Max:

    100 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADS8028IRTJT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS8028 application note (SLAA532). It's essential to follow these guidelines to ensure optimal performance and minimize noise coupling.
  • The ADS8028IRTJT has a programmable analog input filter. To optimize the filter, you need to consider the signal frequency, noise bandwidth, and desired attenuation. TI provides a filter design tool (ADS8028 Filter Design Tool) to help you determine the optimal filter coefficients for your application.
  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper device operation.
  • The CLKIN input should be driven by a low-jitter clock source with a frequency between 10 MHz and 50 MHz. The clock signal should be a square wave with a 50% duty cycle. It's recommended to use a clock buffer or a dedicated clock source to ensure a clean and stable clock signal.
  • The maximum throughput of the ADS8028IRTJT is 1 MSPS. To optimize the throughput, ensure that the analog input signal is within the specified range, and the clock frequency is set to the maximum recommended value (50 MHz). Additionally, optimize the digital interface by using a fast SPI interface and minimizing the number of dummy cycles.
