To minimize noise and ensure optimal performance, it is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane. Additionally, keep the input and output traces short and away from digital signals, and use a low-ESR capacitor for decoupling.
The ADS805E/1K has a rail-to-rail output stage, but it's still important to ensure that the output voltage swing is within the specified range of the load. If the load requires a specific voltage swing, consider using an output buffer or amplifier to condition the signal.
To prevent latch-up or damage, it is recommended to power up the ADS805E/1K in the following sequence: VCC, AVCC, and then the analog input signal. This ensures that the internal biasing and reference circuits are properly established before applying the analog input signal.
To optimize the performance of the ADS805E/1K in high-frequency applications, consider using a low-pass filter at the input to remove high-frequency noise, and a series resistor at the output to dampen ringing. Additionally, use a high-quality decoupling capacitor and ensure that the PCB layout is optimized for high-frequency signals.
To ensure proper thermal management of the ADS805E/1K, it is recommended to provide adequate heat sinking, such as a thermal pad or heat sink, and to ensure good airflow around the device. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS805E/1K Overview

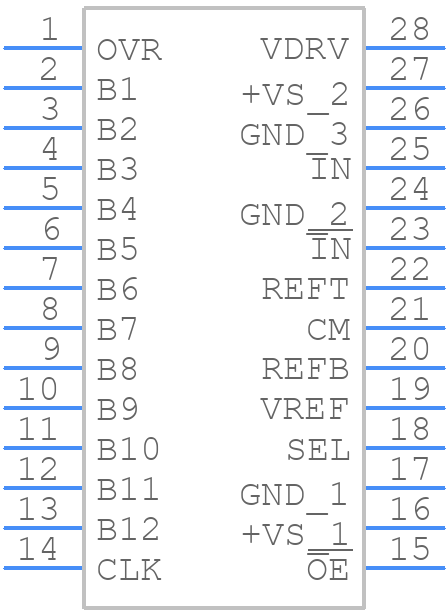

Use the download button to access the ADS805E/1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS80,
or try a keyword search, such as Analog to Digital Converters
