Texas Instruments provides a layout guide in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the analog inputs.
TI provides an ADS805E evaluation module and a software development kit (SDK) that can help optimize performance. Additionally, engineers can consult the datasheet and application notes for guidance on optimizing settings such as gain, offset, and filtering for their specific use case.
The maximum sampling rate of the ADS805EG4 is 250 MSPS, but this can be limited by the analog input bandwidth, clock jitter, and other system-level factors. Engineers should consult the datasheet and perform system-level simulations to determine the achievable sampling rate in their specific application.
The ADS805EG4 has LVDS outputs that require proper termination and routing to maintain signal integrity. Engineers should use a 100-ohm differential termination resistor and ensure that the PCB traces are properly matched and routed to minimize reflections and crosstalk.
The power consumption of the ADS805EG4 is typically around 1.2 W, but this can vary depending on the sampling rate and other settings. Engineers can reduce power consumption by using the device's power-down mode, reducing the sampling rate, or using a lower supply voltage (e.g., 1.8 V instead of 3.3 V).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS805EG4 Overview

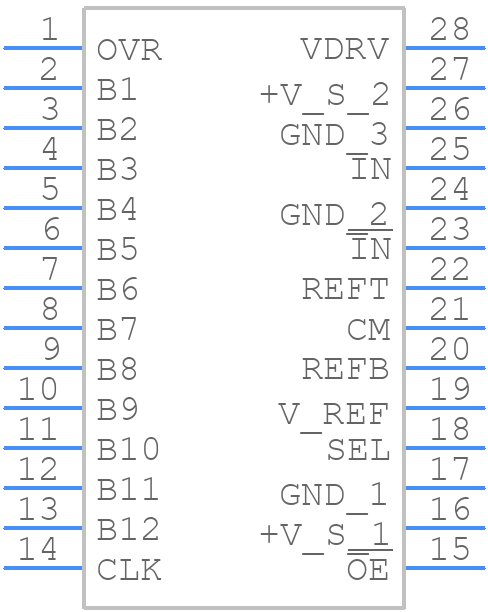

Use the download button to access the ADS805EG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS80,
or try a keyword search, such as Analog to Digital Converters
