To minimize noise and ensure optimal performance, it is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane. Additionally, keep the analog input traces short and away from digital traces, and use a low-ESR capacitor for decoupling.
To optimize the analog input range, you can adjust the gain of the amplifier using the PGA (Programmable Gain Amplifier) feature. You can also use the VREF pin to set the reference voltage and adjust the input range accordingly. Additionally, consider using an external amplifier or attenuator if the input signal is outside the ADS805E's input range.
To handle overvoltage protection, use external voltage-limiting resistors or a voltage clamp circuit to limit the input voltage to within the ADS805E's absolute maximum ratings. You can also consider using a voltage supervisor or a reset IC to monitor the input voltage and reset the system if it exceeds the maximum rating.
To ensure accurate temperature measurement, calibrate the internal temperature sensor by measuring the temperature using an external thermometer and adjusting the offset and gain registers accordingly. Also, ensure that the device is in a thermally stable environment and avoid self-heating effects by minimizing power consumption.
To ensure proper operation, power up the ADS805E in the following sequence: VDD, AVDD, and then DVDD. When powering down, reverse the sequence: DVDD, AVDD, and then VDD. This ensures that the analog and digital circuits are properly initialized and shut down to prevent damage or malfunction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS805E Overview

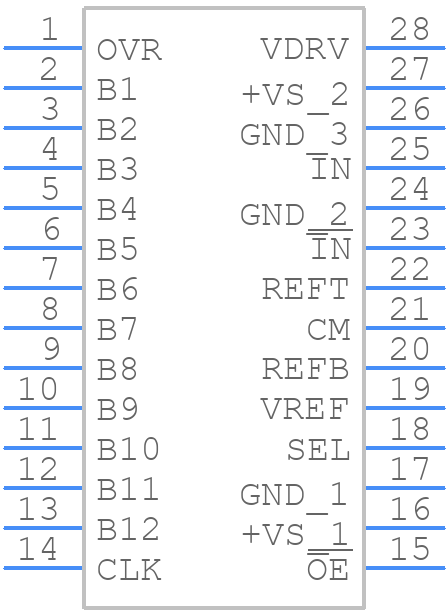

Use the download button to access the ADS805E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS80,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
