Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The input and output traces should be routed away from each other and from the digital signals. Additionally, decoupling capacitors should be placed close to the device.
To optimize performance, ensure that each ADC has its own separate analog power supply and ground plane. Use a common mode filter or a ferrite bead to reduce noise coupling between the ADCs. Also, consider using a separate analog ground plane for each ADC.
A low-jitter clock source, such as a crystal oscillator or a high-quality clock generator, is recommended. To minimize clock jitter, use a clock signal with a frequency of at least 10 times the sampling frequency, and ensure the clock signal is clean and free of noise.
The digital output data from the ADS8411IBPFBT should be processed and filtered according to the specific application requirements. A digital filter, such as a low-pass filter or a decimation filter, may be necessary to remove noise and aliasing. Additionally, consider using a FIFO or a buffer to handle the data and ensure data integrity.
The ADS8411IBPFBT has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, and consider using a heat sink or a thermal pad to dissipate heat. Also, ensure that the device is operated within the recommended temperature range of -40°C to 125°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8411IBPFBT Overview

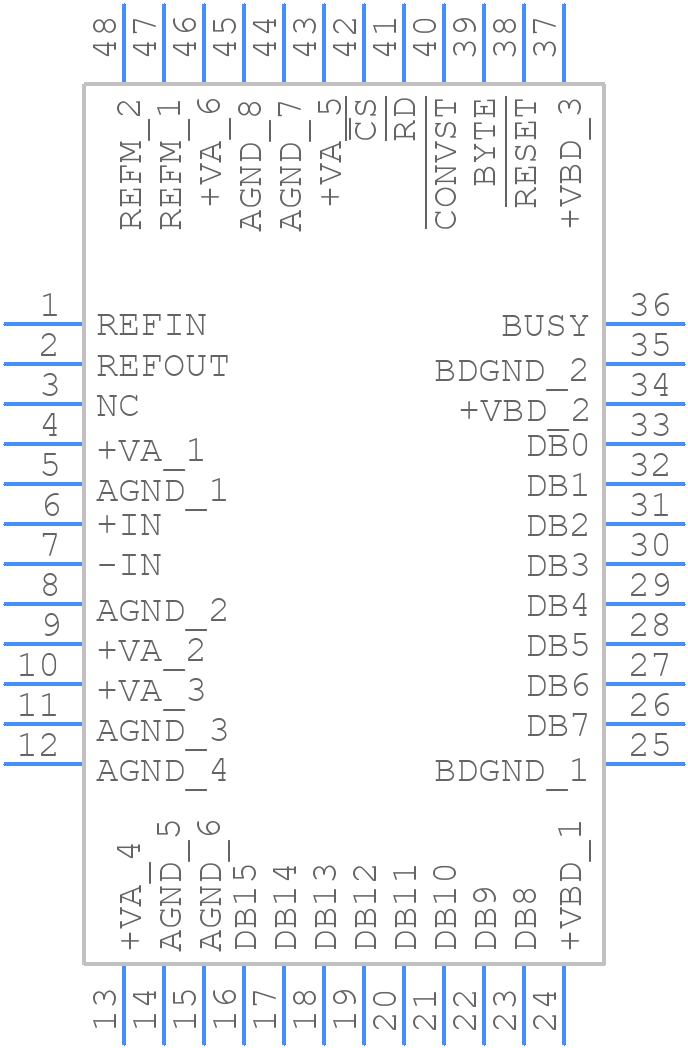

Use the download button to access the ADS8411IBPFBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
