Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The datasheet provides a recommended layout and routing guide, but it's also recommended to consult with TI's application notes and design guides for more detailed information.
To optimize performance in noisy environments, ensure proper PCB layout and routing, use a low-noise power supply, and consider adding external filtering or shielding to reduce electromagnetic interference (EMI). Additionally, consider using the device's built-in features such as the programmable gain amplifier (PGA) and the analog-to-digital converter (ADC) to improve noise immunity.
The maximum sampling rate of the ADS8862IDRCT is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the device's power consumption, and the specific application requirements.
The ADS8862IDRCT has an internal calibration mechanism, but it's recommended to perform an external calibration to ensure optimal performance. This can be done by using the device's built-in calibration registers and following the calibration procedure outlined in the datasheet and application notes.
The power consumption of the ADS8862IDRCT varies depending on the operating mode, sampling rate, and other factors. The typical power consumption is around 35 mW at 1 MSPS, but it can be as low as 10 mW in low-power mode. Consult the datasheet and application notes for more detailed power consumption information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8862IDRCT Overview

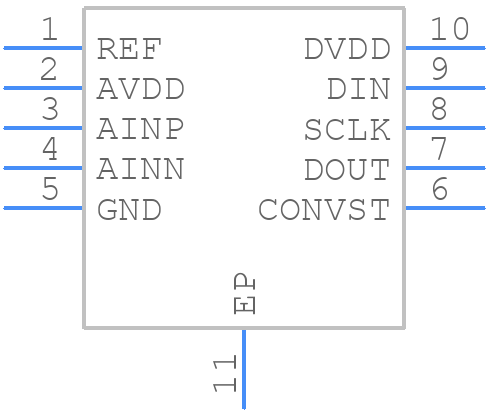

Use the download button to access the ADS8862IDRCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS88,
or try a keyword search, such as Analog to Digital Converters
