The recommended layout and routing for the ADS9120IRGET involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also important to keep the clock and digital signals away from the analog inputs.
To optimize the performance of the ADS9120IRGET in terms of noise reduction, use a low-noise power supply, decouple the power pins with capacitors, and use a shielded enclosure to reduce electromagnetic interference (EMI). Additionally, use a low-pass filter on the analog input signals to reduce high-frequency noise.
The maximum sampling rate of the ADS9120IRGET is 1 MSPS. As the sampling rate increases, the power consumption also increases. To minimize power consumption, reduce the sampling rate or use the device's power-down mode when not in use.
The ADS9120IRGET can be interfaced with a microcontroller or FPGA using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) interface. The device's digital output can be connected to the microcontroller or FPGA's digital input pins, and the clock signal can be generated by the microcontroller or FPGA.
The ADS9120IRGET has a high accuracy and linearity, with a typical differential nonlinearity (DNL) of ±0.5 LSB and an integral nonlinearity (INL) of ±1 LSB. This high accuracy and linearity ensure that the device provides reliable and accurate conversions, which is critical in many applications such as industrial automation, medical devices, and automotive systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS9120IRGET Overview

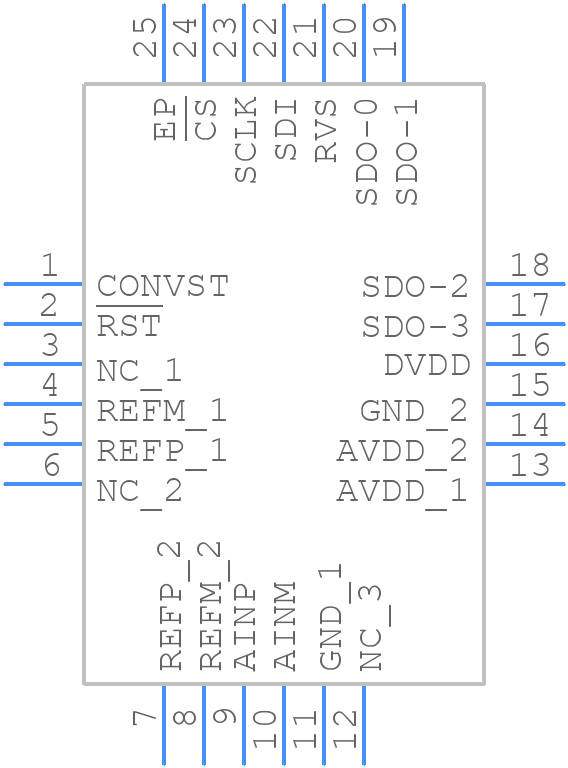

Use the download button to access the ADS9120IRGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS91,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
