ADS9224RIRHBR - Texas Instruments

Description: 16-bit, 3-MSPS, dual-channel, simultaneous-sampling SAR ADC with internal reference and enhanced SPI

Download ADS9224RIRHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

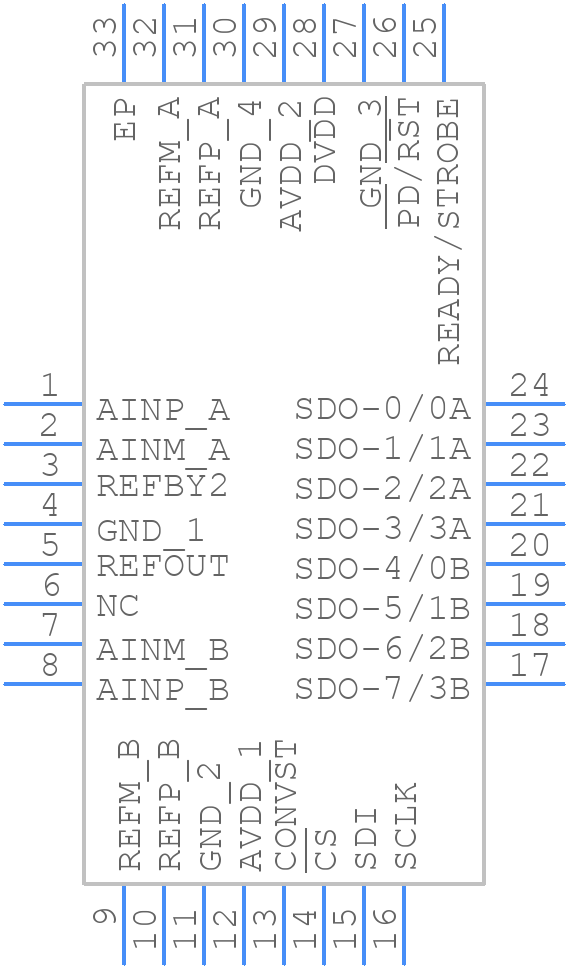

ADS9224RIRHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS9224RIRHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
ADS9224RIRHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

ADS9224RIRHBR Details

  • Manufacturer Part Number:

    ADS9224RIRHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HQCCN-32

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2018-08-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    4.096 V

  • Analog Input Voltage-Min:

    -4.096 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    3 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADS9224RIRHBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS9224RIRHBR Evaluation Module User's Guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • The optimal analog input filter design depends on the specific application's requirements. TI provides an Analog Input Filter Design Tool (AIFDT) that helps designers optimize the filter for their application. The tool can be found on the TI website.
  • The maximum sampling rate of the ADS9224RIRHBR is 40 MSPS. However, the actual achievable sampling rate may be limited by the system's clock jitter, analog input bandwidth, and digital output data rate.
  • The ADS9224RIRHBR outputs 14-bit or 12-bit digital data in a serial format. The digital output data can be handled using a digital signal processor (DSP), field-programmable gate array (FPGA), or a microcontroller (MCU) with a serial peripheral interface (SPI) or serial voltage output (SVO) interface.
  • The power consumption of the ADS9224RIRHBR depends on the operating mode, sampling rate, and supply voltage. The typical power consumption is around 65 mW at 40 MSPS with a 3.3 V supply voltage. Refer to the datasheet for more detailed power consumption information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS9224RIRHBR Overview

Use the download button to access the ADS9224RIRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS92, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
