Texas Instruments provides a recommended PCB layout in the AMC1304L05DW datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, TI recommends following good PCB design practices, such as using a solid ground plane, separating analog and digital signals, and using decoupling capacitors to minimize noise.
To ensure accurate voltage measurement, it's essential to consider the input impedance of the AMC1304L05DW, which is typically around 1 kΩ. You should also ensure that the input voltage is within the specified range (±650 mV for the AMC1304L05DW). Additionally, use a voltage divider or an attenuator to scale down the input voltage if necessary, and consider using a buffer amplifier to drive the input signal.
The maximum sampling rate of the AMC1304L05DW is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the device's internal clock, the input signal bandwidth, and the system's overall noise performance. Higher sampling rates can lead to increased noise and decreased accuracy, so it's essential to balance the sampling rate with the system's requirements and noise tolerance.
The AMC1304L05DW outputs data in a serial format, using a SPI-compatible interface. You'll need to use a microcontroller or a dedicated SPI interface to read the output data, which is typically 16-bit or 24-bit, depending on the device's configuration. You may also need to implement data processing and formatting to extract the desired information from the output data.
The AMC1304L05DW has a specified operating temperature range of -40°C to 125°C. To ensure reliable operation, you should consider the device's thermal characteristics, such as its junction-to-ambient thermal resistance (RθJA) and its power dissipation. You may need to implement thermal management techniques, such as heat sinking or thermal interface materials, to maintain the device's temperature within the specified range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1304L05DW Overview

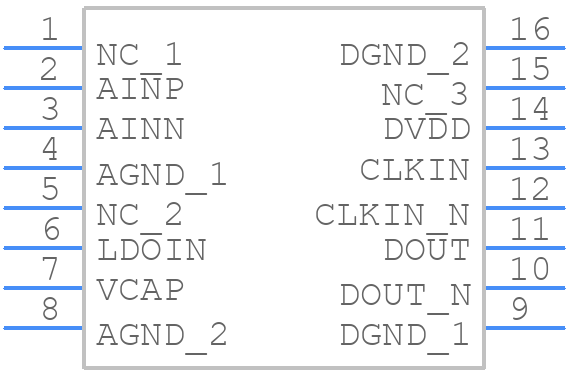

Use the download button to access the AMC1304L05DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Analog to Digital Converters
