A good PCB layout for the AMC1304M05DW involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. Additionally, consider using an external calibration voltage source and a precision voltage reference to improve accuracy.
Operating the AMC1304M05DW outside the recommended temperature range of -40°C to 125°C may affect its performance, accuracy, and reliability. The device may experience reduced accuracy, increased noise, and potentially even damage or failure. It is essential to ensure the device operates within the recommended temperature range for optimal performance and reliability.
The AMC1304M05DW's POR and BOR features are designed to ensure the device resets properly during power-up and brown-out conditions. To handle these features, ensure that the power supply is stable and within the recommended range, and that the device is properly decoupled with capacitors. Additionally, consider using an external reset circuit to ensure a clean reset signal.
To minimize EMI and RFI when using the AMC1304M05DW, ensure proper PCB layout, use shielding, and follow good electromagnetic compatibility (EMC) design practices. Additionally, consider using filters, such as RC filters or ferrite beads, to reduce high-frequency noise and improve electromagnetic immunity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1304M05DW Overview

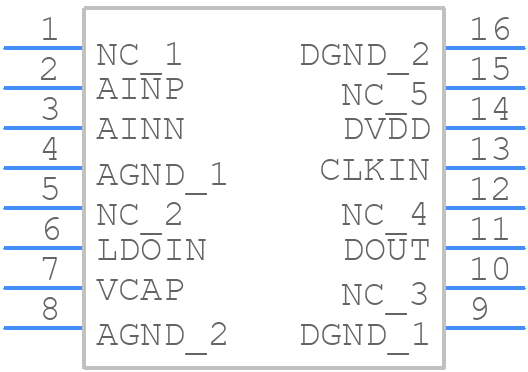

Use the download button to access the AMC1304M05DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
