Texas Instruments provides a recommended PCB layout in the AMC1304M25QDWQ1 datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, TI recommends following good PCB design practices, such as using a solid ground plane, separating analog and digital signals, and using shielding to minimize electromagnetic interference (EMI).
The AMC1304M25QDWQ1 has an internal calibration mechanism, but it may require additional calibration for specific applications. TI recommends following the calibration procedure outlined in the datasheet, which includes setting the internal calibration registers and performing a system-level calibration. Additionally, TI provides a calibration tool and software to help with the calibration process.
The AMC1304M25QDWQ1 has an operating temperature range of -40°C to 125°C. While the device can operate within this range, its performance may be affected by temperature. TI recommends consulting the datasheet for temperature-related specifications, such as offset voltage and gain error, to ensure the device meets the required performance in the target application.
The AMC1304M25QDWQ1 has a POR and BOR feature to ensure the device resets properly during power-up and power-down sequences. TI recommends following the power-up and power-down sequencing guidelines outlined in the datasheet to ensure the POR and BOR features function correctly. Additionally, the device's reset pins can be connected to a microcontroller or other logic to handle reset events.
The AMC1304M25QDWQ1 is a high-frequency device that can be susceptible to EMI and RFI. TI recommends following good design practices, such as using shielding, filtering, and grounding, to minimize EMI and RFI. Additionally, TI provides guidelines for PCB layout, component selection, and system-level design to help mitigate EMI and RFI issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1304M25QDWQ1 Overview

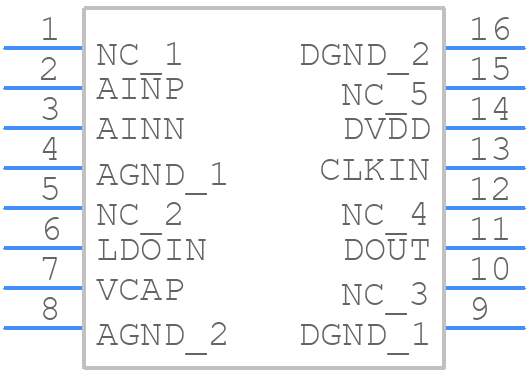

Use the download button to access the AMC1304M25QDWQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
