AWR6843AQGABLQ1 - Texas Instruments

Description: RF System on a Chip - SoC Single-chip 60-GHz to 64-GHz automotive radar sensor integrating DSP, MCU and radar accelerator 161-FC/CSP -40 to 125

Download AWR6843AQGABLQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AWR6843AQGABLQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

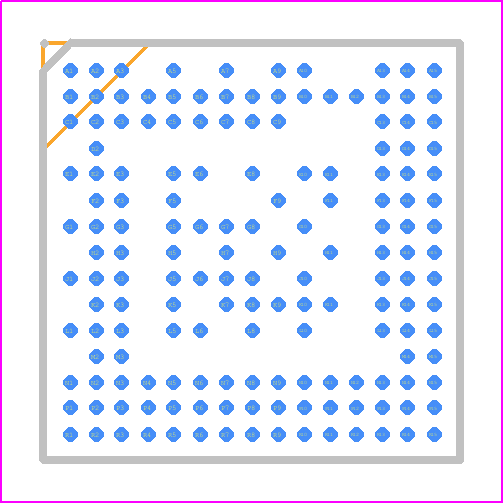

AWR6843AQGABLQ1 - Texas Instruments PCB footprint - BGA - BGA - ABL0161B
click to zoom
3D Models
AWR6843AQGABLQ1 - Texas Instruments - 3D model - BGA - ABL0161B
click to zoom

AWR6843AQGABLQ1 Details

  • Manufacturer Part Number:

    AWR6843AQGABLQ1

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.75

  • Date Of Intro:

    2020-07-17

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Body Breadth:

    10.4 mm

  • Body Height:

    1.17 mm

  • Body Length or Diameter:

    10.4 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    161

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.45-1.35V

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    BGA161,15X15,26

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    MMWAVE RADAR SENSOR MODULE

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.14 V

  • Surface Mount:

    YES

  • Technology:

    RFCMOS

AWR6843AQGABLQ1 Frequently Asked Questions (FAQs)

  • The maximum range of the AWR6843AQGABLQ1 is approximately 100 meters, depending on the environment and target size.
  • The AWR6843AQGABLQ1 uses a combination of frequency hopping and spatial diversity to mitigate multipath interference. Additionally, the device's built-in signal processing algorithms help to reduce the effects of multipath.
  • Yes, the AWR6843AQGABLQ1 can be used for gesture recognition applications. The device's high-resolution range and velocity data enable accurate detection of gestures and movements.
  • The power consumption of the AWR6843AQGABLQ1 is approximately 1.5W in active mode and 10uA in standby mode, making it suitable for battery-powered applications.
  • Yes, the AWR6843AQGABLQ1 is designed to operate in outdoor environments and can withstand temperatures ranging from -40°C to 85°C. However, the device's performance may be affected by weather conditions such as heavy rain or fog.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AWR6843AQGABLQ1 Overview

Use the download button to access the AWR6843AQGABLQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AWR68, or try a keyword search, such as Other Sensors/Transducers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
