AWR6843AQGABLRQ1 - Texas Instruments

Description: mmWave Sensor Digital Output 1.2V Automotive 161-Pin FC/CSP T/R

Download AWR6843AQGABLRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AWR6843AQGABLRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

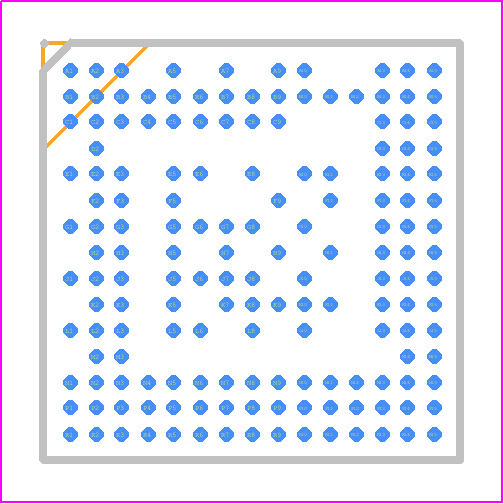

AWR6843AQGABLRQ1 - Texas Instruments PCB footprint - BGA - BGA - ABL0161B_2021
click to zoom
3D Models
AWR6843AQGABLRQ1 - Texas Instruments - 3D model - BGA - ABL0161B_2021
click to zoom

AWR6843AQGABLRQ1 Details

  • Manufacturer Part Number:

    AWR6843AQGABLRQ1

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.75

  • Date Of Intro:

    2020-07-17

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Body Breadth:

    10.4 mm

  • Body Height:

    1.17 mm

  • Body Length or Diameter:

    10.4 mm

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    161

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.45-1.35V

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    BGA161,15X15,26

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    MMWAVE RADAR SENSOR MODULE

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.14 V

  • Surface Mount:

    YES

  • Technology:

    RFCMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

AWR6843AQGABLRQ1 Frequently Asked Questions (FAQs)

  • The maximum range of the AWR6843AQGABLRQ1 radar sensor is up to 80 meters, depending on the antenna configuration and environmental conditions.
  • The AWR6843AQGABLRQ1 uses a combination of techniques such as frequency hopping, spatial diversity, and adaptive filtering to mitigate multipath interference.
  • Yes, the AWR6843AQGABLRQ1 can be used for gesture recognition applications due to its high-resolution range and velocity data, as well as its ability to detect micro-Doppler signatures.
  • The power consumption of the AWR6843AQGABLRQ1 is typically around 1.5W to 2.5W, depending on the operating mode and frequency of operation.
  • Yes, the AWR6843AQGABLRQ1 is designed to operate in harsh environmental conditions, including temperatures ranging from -40°C to 125°C, and humidity up to 95%.
