IWR6843AQGABL - Texas Instruments

Description: RF System on a Chip - SoC Single-chip 60-GHz to 64-GHz intelligent mmWave sensor integrating processing capability 161-FC/CSP -40 to 105

Download IWR6843AQGABL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IWR6843AQGABL - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

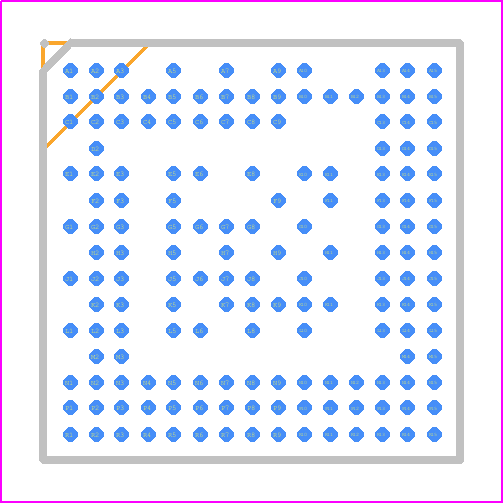

IWR6843AQGABL - Texas Instruments PCB footprint - BGA - BGA - ABL0161A
click to zoom
3D Models
IWR6843AQGABL - Texas Instruments - 3D model - BGA - ABL0161A
click to zoom

IWR6843AQGABL Details

  • Manufacturer Part Number:

    IWR6843AQGABL

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines, South Korea

  • ECCN Code:

    5A991.B.6.B

  • HTS Code:

    8542.31.00.75

  • Date Of Intro:

    2020-05-09

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Frequency range : 60 - 64 GHz

  • Body Breadth:

    10.4 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    10.4 mm

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    161

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.45-1.35V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    BGA161,15X15,26

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    MMWAVE RADAR SENSOR MODULE

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.14 V

  • Surface Mount:

    YES

  • Technology:

    RFCMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

IWR6843AQGABL Frequently Asked Questions (FAQs)

  • The maximum range of the IWR6843AQGABL is approximately 10 meters (33 feet) for a single target, but this can vary depending on the target size, shape, and material.
  • The IWR6843AQGABL uses a combination of frequency modulation and pulse compression to mitigate multipath interference. Additionally, the device's built-in signal processing algorithms can help to reduce the effects of multipath.
  • Yes, the IWR6843AQGABL can be used for gesture recognition applications. The device's high-resolution range and velocity data can be used to detect and classify different gestures.
  • The minimum distance between targets that the IWR6843AQGABL can resolve is approximately 10-15 cm (4-6 inches), depending on the target size and shape.
  • Yes, the IWR6843AQGABL can be used outdoors, but it may require additional protection from environmental factors such as weather, temperature, and humidity. The device's operating temperature range is -40°C to 85°C (-40°F to 185°F).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IWR6843AQGABL Overview

Use the download button to access the IWR6843AQGABL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IWR68, or try a keyword search, such as Other Sensors/Transducers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
