- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for BQ24072TRGTR
- Part Number BQ24072TRGTR
- Manufacturer Texas Instruments
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RGT
- Released Date Feb 12, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BQ24072TRGTR Details
-
Manufacturer Part Number:
BQ24072TRGTR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFN
-
Pin Count:
16
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
BQ24072TRGTR Frequently Asked Questions (FAQs)
-
A good PCB layout for the BQ24072TRGTR involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. Additionally, it's recommended to use a separate power plane for the input and output to minimize noise coupling.
-
The selection of external components such as capacitors, resistors, and inductors depends on the specific application requirements. TI provides a component selection guide in the datasheet, and engineers can also use TI's online tools such as the Power Stage Designer to help with component selection.
-
The BQ24072TRGTR has a maximum junction temperature of 150°C. To ensure reliable operation, engineers should ensure good thermal design, including a heat sink if necessary, and follow TI's recommended thermal design guidelines. Additionally, the device has built-in thermal protection, which will shut down the device if the junction temperature exceeds 150°C.
-
The BQ24072TRGTR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The device will limit the output current to the programmed value when an overcurrent condition is detected.
-
Yes, the BQ24072TRGTR is suitable for high-reliability applications. TI provides reliability data in the datasheet, including FIT rates, MTBF, and other relevant specifications. Engineers should consult the datasheet and TI's reliability reports for more information.
Trust Checks
Community Provided
System Verified
Community Approved
BQ24072TRGTR Overview

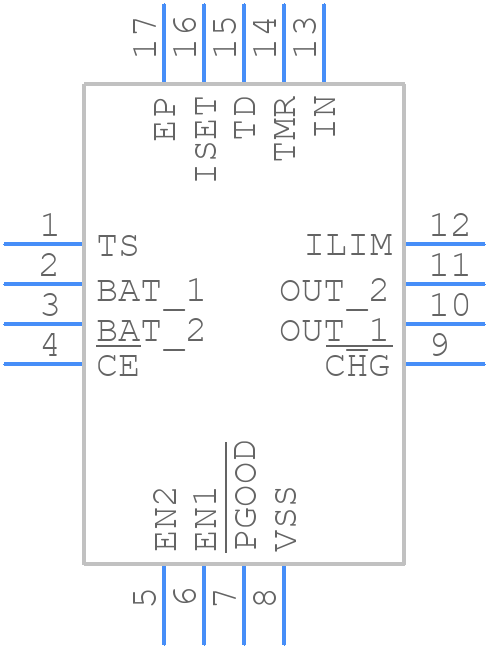

Use the download button to access the BQ24072TRGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ240,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
