The recommended layout and placement for the BQ26500PW involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. A 4-layer PCB is recommended, with the top layer for signals, the second layer for the power plane, the third layer for the ground plane, and the bottom layer for the signals.
To optimize the charging profile for your specific battery, you can use the BQ26500PW's programmable charging profile feature. You can adjust the charging voltage, current, and termination voltage to match your battery's requirements. You can also use the device's built-in battery monitoring features to monitor the battery's state of charge, voltage, and temperature.
The BQ26500PW has a thermal shutdown feature that turns off the device if the junction temperature exceeds 150°C. To minimize thermal issues, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the device. You can also use the device's thermal monitoring feature to monitor the junction temperature.
To ensure safe charging, use the BQ26500PW's built-in overcharge and undercharge protection features. These features prevent the battery from being overcharged or undercharged, which can cause damage to the battery. You can also use the device's battery monitoring features to monitor the battery's state of charge and voltage.
Yes, the BQ26500PW is designed to support multiple battery chemistries, including Li-ion, Li-polymer, and NiMH. You can adjust the charging profile and parameters to match the specific requirements of your battery chemistry.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ26500PW Overview

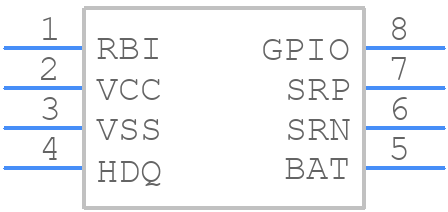

Use the download button to access the BQ26500PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ265,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
