The recommended layout and placement for the BQ27220YZFR involves placing the device close to the battery, using a 4-layer PCB with a solid ground plane, and keeping the analog and digital grounds separate. Additionally, the device should be placed away from high-current carrying traces and heat sources.
The BQ27220YZFR does not require calibration. It uses a proprietary algorithm to estimate the battery's state of charge, and the device is calibrated during the manufacturing process. However, the device does require a learn cycle to adapt to the specific battery characteristics.
The BQ27220YZFR's SOC estimation accuracy is typically within ±5% of the actual SOC. However, this accuracy can be affected by factors such as battery age, temperature, and charge/discharge cycles.
Yes, the BQ27220YZFR can be used with multiple battery chemistries, including lithium-ion, lithium-polymer, and nickel-metal hydride. However, the device may require different configuration settings and calibration for optimal performance with different battery chemistries.
The BQ27220YZFR has built-in fault detection and protection mechanisms to handle battery faults such as overcharge or over-discharge. The device can detect these faults and alert the system to take corrective action, such as shutting down the charging circuit or disconnecting the load.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ27220YZFR Overview

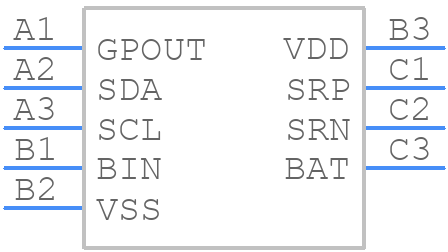

Use the download button to access the BQ27220YZFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ272,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
