The recommended layout and placement for the BQ27220YZFT involves placing the device close to the battery, using a 4-layer PCB with a solid ground plane, and keeping the analog and digital grounds separate. Additionally, the device should be placed away from high-current carrying traces and heat sources.
The BQ27220YZFT can be calibrated using the TI-provided software tool, Fuel Gauge Designer, which allows users to create a custom calibration file based on their specific battery chemistry and configuration. The tool provides a step-by-step calibration process and generates a calibration data file that can be stored in the device's EEPROM.
The BQ27220YZFT's SOC measurement accuracy is typically within ±5% of the actual SOC, depending on the battery chemistry, age, and health. The device uses a complex algorithm that takes into account various factors, including battery voltage, current, and temperature, to estimate the SOC.
Yes, the BQ27220YZFT is designed to be compatible with various battery chemistries, including lithium-ion, lithium-polymer, nickel-metal hydride, and lead-acid. However, the device may require calibration and configuration specific to the battery chemistry being used.
The BQ27220YZFT provides battery health monitoring by tracking parameters such as capacity, resistance, and cycle count. The device can detect anomalies and provide alerts or warnings when the battery health is degraded. The device can also be configured to provide predictive maintenance alerts based on the battery's state of health.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ27220YZFT Overview

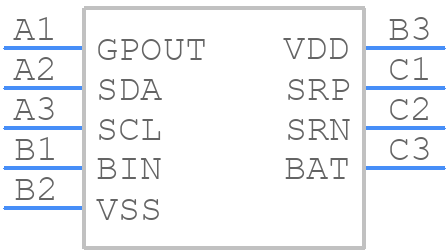

Use the download button to access the BQ27220YZFT schematic symbol, PCB footprint, and 3D model.
