Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the layout guidelines in the application note 'BQ275x0 PCB Layout Guidelines' (SLUA533) to ensure optimal performance and accuracy.
The BQ27520YZFT-G1 has a built-in calibration mechanism. Refer to the 'Fuel Gauge Calibration' section in the datasheet for the step-by-step calibration procedure. Additionally, the 'BQ275x0 Fuel Gauge Calibration' application note (SLUA532) provides more detailed information on the calibration process.
The accuracy of the fuel gauge measurement depends on various factors, including the battery type, age, and health. According to the datasheet, the BQ27520YZFT-G1 has a typical accuracy of ±1% for most battery types. However, it's recommended to consult the 'Fuel Gauge Accuracy' section in the datasheet for more detailed information and to consider the specific use case and battery characteristics.
The BQ27520YZFT-G1 is optimized for lithium-ion and lithium-polymer batteries. While it may be possible to use it with other battery chemistries, it's not recommended without thorough testing and validation. Consult the 'Battery Support' section in the datasheet for more information on supported battery types and consult with Texas Instruments support for custom battery support.
The BQ27520YZFT-G1 has built-in protection features, such as overcharge and over-discharge protection. Refer to the 'Battery Protection' section in the datasheet for more information on how to implement these features. Additionally, the 'BQ275x0 Battery Protection' application note (SLUA531) provides more detailed information on implementing battery protection with the BQ27520YZFT-G1.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ27520YZFT-G1 Overview

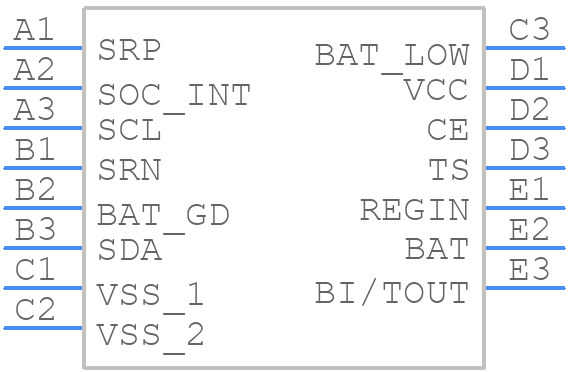

Use the download button to access the BQ27520YZFT-G1 schematic symbol, PCB footprint, and 3D model.
