Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, ensure that the layout is symmetrical to minimize electromagnetic interference (EMI).
The inductor value depends on the input voltage, output voltage, and switching frequency. Texas Instruments provides an inductor selection guide in the datasheet, but you can also use online inductor selection tools or consult with an applications engineer. A general rule of thumb is to choose an inductor with a high saturation current rating and low DC resistance.
The BQ50002ARHBT is rated for operation up to 125°C, but the maximum ambient temperature depends on the specific application and thermal design. Ensure that the device is properly heatsinked, and the thermal design is validated through thermal simulations or testing.
The BQ50002ARHBT has built-in OVP and UVP features, but you may need to add external components to customize the protection thresholds. Consult the datasheet and application notes for guidance on implementing OVP and UVP using the device's EN and UVLO pins.
The input capacitor should be a low-ESR, high-frequency capacitor with a value between 10uF to 22uF. X5R or X7R ceramic capacitors are suitable for most applications. Ensure that the capacitor is rated for the input voltage and has a low equivalent series resistance (ESR) to minimize voltage ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ50002ARHBT Overview

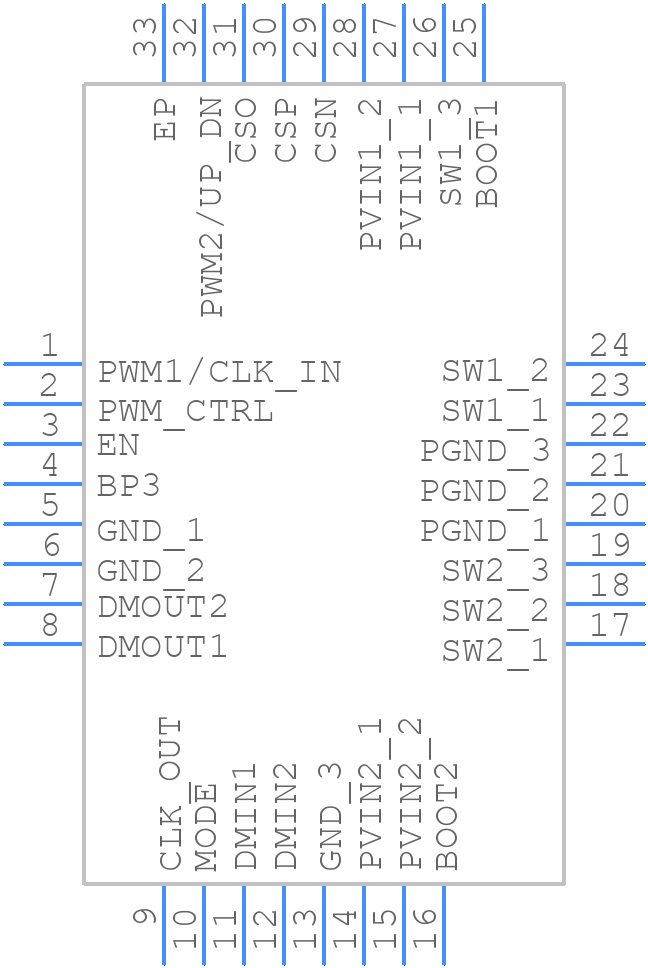

Use the download button to access the BQ50002ARHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ500,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
