- Part Number BQ7791504PW
- Manufacturer Texas Instruments
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PW (R-PDSO-G24)
- Released Date Apr 7, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BQ7791504PW Details
-
Manufacturer Part Number:
BQ7791504PW
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Date Of Intro:
2019-07-12
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
BQ7791504PW Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'BQ77915x Layout Guidelines' (SLUAAC4) for optimal performance and to minimize noise and EMI.
-
The BQ7791504PW is a flexible gas gauge IC that can be configured for various battery chemistries using the TI-provided software tools, such as the Battery Management Studio (BMS) or the Fuel Gauge Designer. These tools allow you to customize the gauge's behavior and settings for your specific battery chemistry.
-
The accuracy of the SOC measurement depends on various factors, including the battery type, age, and health. However, according to the datasheet, the BQ7791504PW can provide an SOC accuracy of ±5% or better over the entire operating range, assuming a properly calibrated device and a healthy battery.
-
The BQ7791504PW is rated for operation up to 85°C, but it can be used in high-temperature applications with some limitations. However, it's essential to follow the guidelines in the datasheet and application notes to ensure reliable operation and to avoid overheating, which can affect the device's accuracy and lifespan.
-
The BQ7791504PW does not have built-in cell balancing capabilities, but it can be used in conjunction with external cell balancing circuits or ICs. Texas Instruments provides application notes and reference designs that demonstrate how to implement cell balancing with the BQ7791504PW.
Trust Checks
Community Provided
System Verified
Community Approved
BQ7791504PW Overview

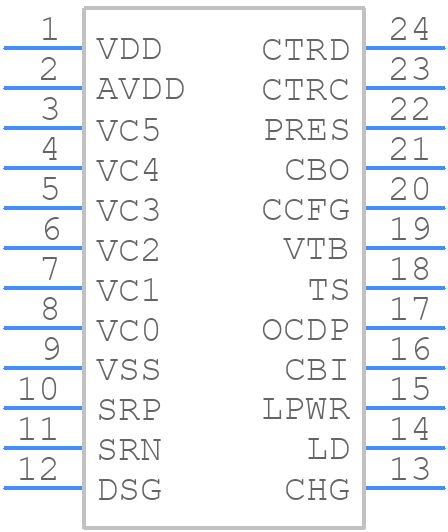

Use the download button to access the BQ7791504PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ779,
or try a keyword search, such as Power Management Circuits
