Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the power traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, ensure that the layout is symmetrical to minimize electromagnetic interference (EMI).
The BQ78PL114RGZR supports various battery chemistries, including Li-ion, Li-polymer, and LiFePO4. To configure the device for a specific chemistry, you need to set the appropriate charge voltage, charge current, and termination voltage using the device's registers. Refer to the datasheet and application notes for specific configuration guidelines.
The BQ78PL114RGZR can handle a maximum charging current of 4A. However, the actual charging current is limited by the external power source and the battery's capacity. Ensure that the charging current is within the recommended range to prevent overheating and damage to the device or battery.
The BQ78PL114RGZR has built-in overcharge protection, which can be enabled by setting the appropriate registers. The device will automatically terminate charging when the battery voltage reaches the programmed overcharge threshold. Additionally, you can implement external overcharge protection using a voltage supervisor or a separate overcharge protection IC.
Yes, the BQ78PL114RGZR can be used for charging multiple batteries in parallel. However, you need to ensure that each battery has its own charging path and that the total charging current does not exceed the device's maximum rating. Additionally, you may need to implement external balancing circuits to ensure that each battery is charged equally.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ78PL114RGZR Overview

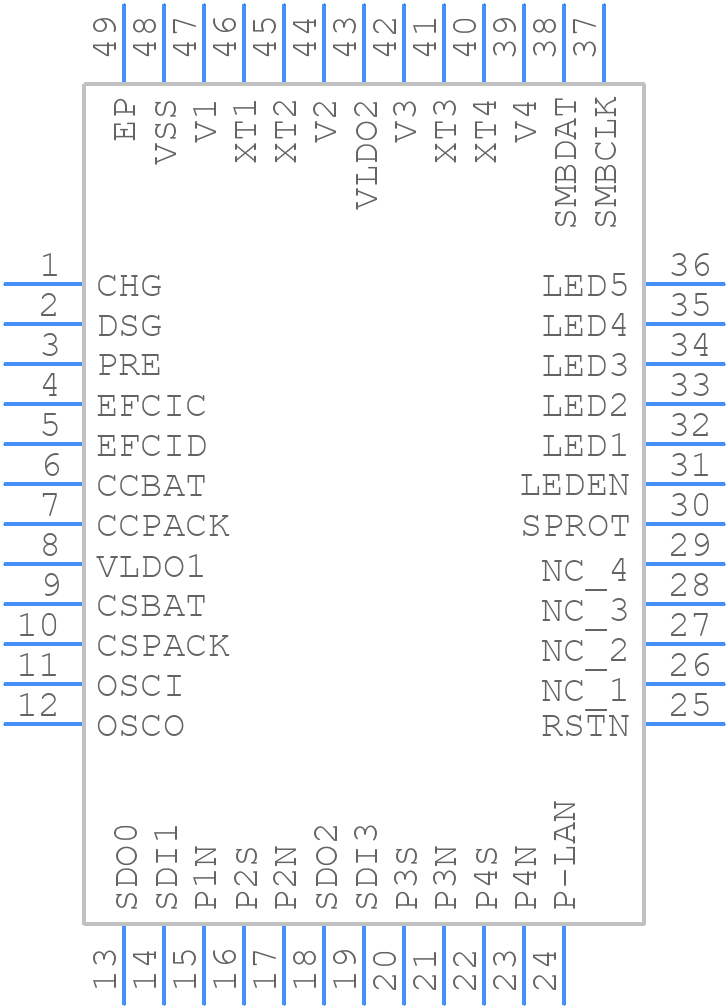

Use the download button to access the BQ78PL114RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ78P,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
