- Part Number BQ79606APHPRQ1
- Manufacturer Texas Instruments
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - PHP (S-PQFP-G48)
- Released Date Oct 27, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BQ79606APHPRQ1 Details
-
Manufacturer Part Number:
BQ79606APHPRQ1
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Date Of Intro:
2019-04-27
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
BQ79606APHPRQ1 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate layer for the high-current paths is recommended. The datasheet provides a recommended layout, but it's essential to follow good PCB design practices to minimize noise and ensure reliable operation.
-
The sense resistors should be chosen based on the maximum current rating of the device and the desired current sense accuracy. A lower sense resistor value will provide better accuracy but may increase power loss. TI provides a sense resistor calculator tool to help with the selection process.
-
The BQ79606APHPRQ1 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and consider the operating temperature range in the system design.
-
The BQ79606APHPRQ1 has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The device will shut down if the current exceeds the programmed threshold. The datasheet provides more information on how to implement overcurrent protection.
-
The BQ79606APHPRQ1 is rated for a maximum voltage of 60V. While it can be used in high-voltage applications, it's essential to ensure that the device is properly protected from overvoltage and that the system design meets the required safety standards.
Trust Checks
System Verified
BQ79606APHPRQ1 Overview

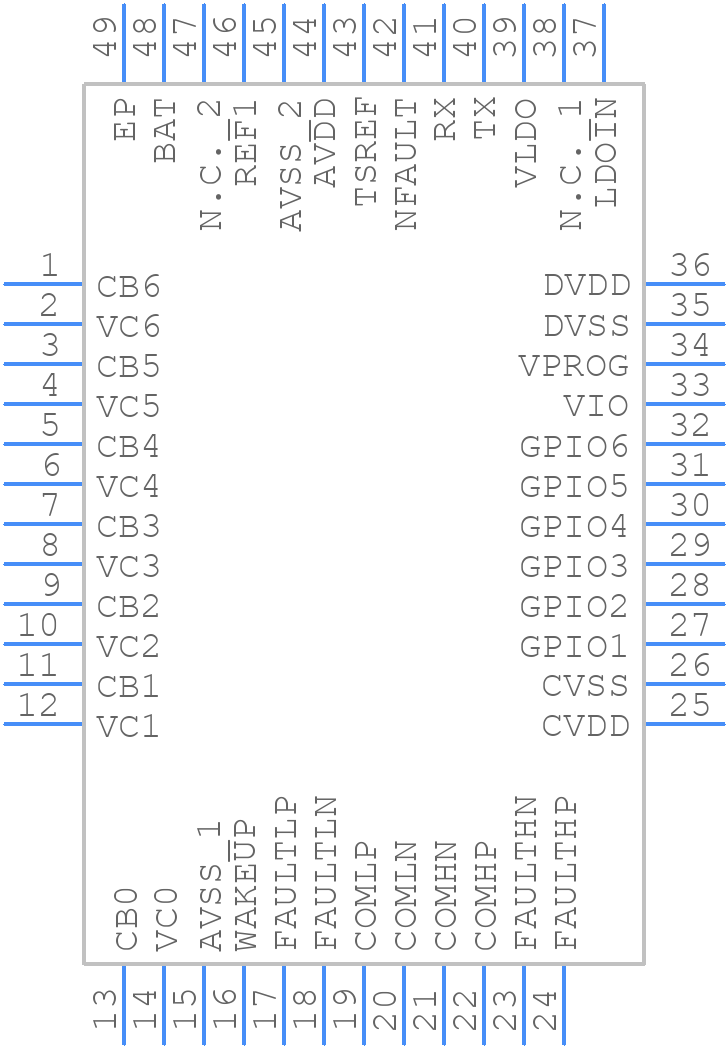

Use the download button to access the BQ79606APHPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ796,
or try a keyword search, such as Power Management Circuits
