FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
5.25 V
Supply Voltage-Min (Vsup):
1.8 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
BQ79606APHPTQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors.
The BQ79606APHPTQ1 is designed to work with various battery chemistries, including lithium-ion, lead-acid, and nickel-cadmium. Configuration involves setting the correct voltage and current limits, which can be done through the device's registers or using the TI-provided software development kit (SDK).
The BQ79606APHPTQ1 has an operating temperature range of -40°C to 125°C, but it's recommended to operate within a narrower range (e.g., 0°C to 85°C) for optimal performance and reliability.
OTA firmware updates can be implemented using the BQ79606APHPTQ1's built-in bootloader and a communication interface such as UART or SPI. TI provides guidelines and example code for implementing OTA updates in the device's documentation.
When working with the BQ79606APHPTQ1, it's essential to follow proper safety precautions, such as using protective equipment (e.g., safety glasses, gloves), avoiding electrical shock hazards, and ensuring proper ventilation to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ79606APHPTQ1 Overview

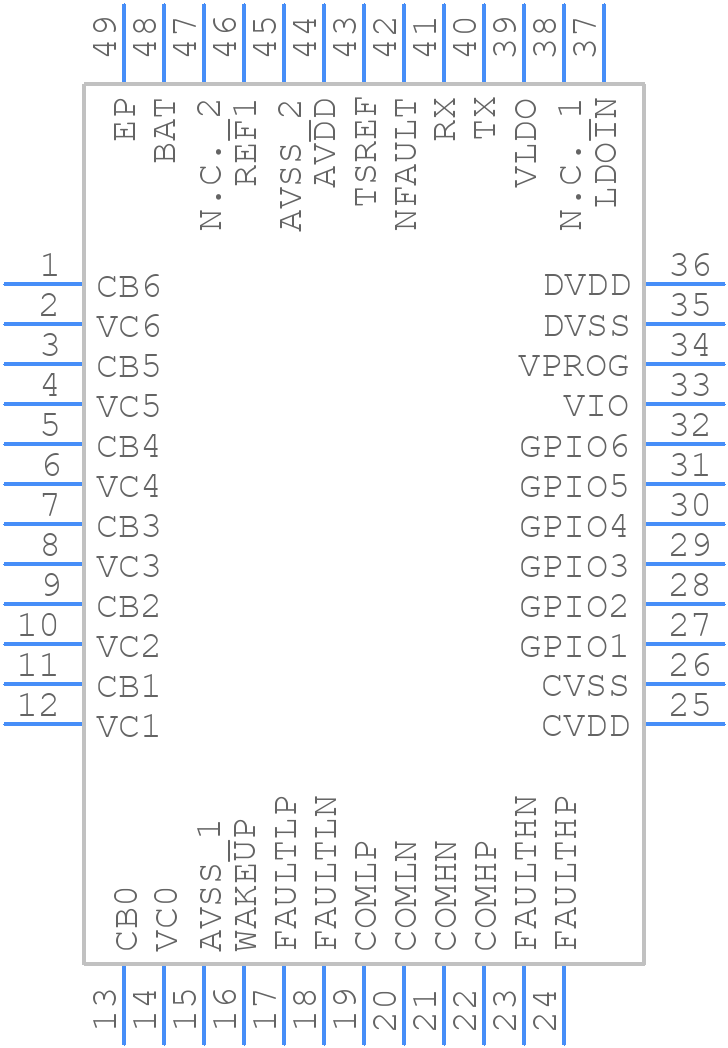

Use the download button to access the BQ79606APHPTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ796,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
