DP83867ERGZR - Texas Instruments

Description: Extended temperature, robust low-latency gigabit Ethernet PHY transceiver with SGMII

Download DP83867ERGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

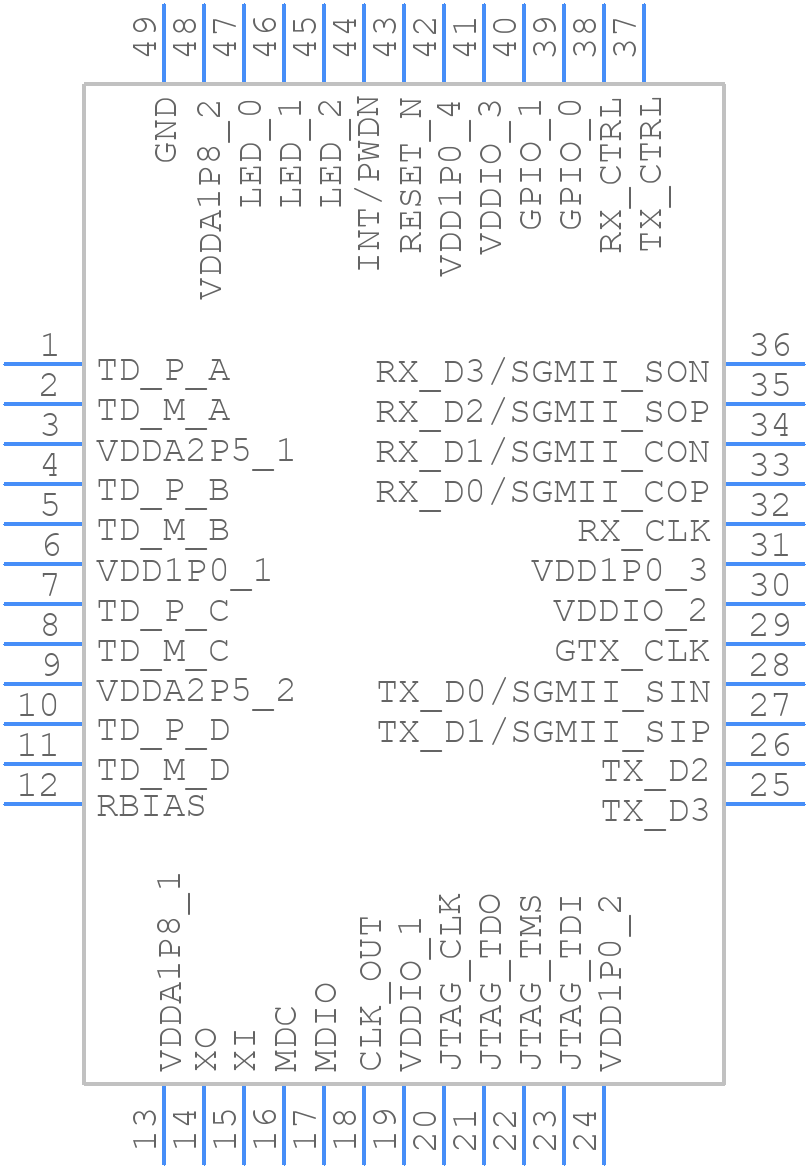

DP83867ERGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83867ERGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048B
click to zoom
3D Models
DP83867ERGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048B
click to zoom

DP83867ERGZR Details

  • Manufacturer Part Number:

    DP83867ERGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DP83867ERGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DP83867ERGZR datasheet, but it's also recommended to follow the guidelines in the 'High-Speed PCB Layout Guidelines' application note (SL-427) for optimal performance.
  • The DP83867ERGZR is a highly configurable device. For specific Ethernet protocol configurations, refer to the 'DP83867ERGZR Configuration and Register Programming Guide' (SWRU623) and the 'DP83867ERGZR Register Description' (SWRU624) documents.
  • The DP83867ERGZR has a maximum junction temperature of 150°C. Ensure proper thermal design and heat dissipation to prevent overheating. Refer to the 'Thermal Design Considerations' section in the datasheet for more information.
  • For troubleshooting, refer to the 'DP83867ERGZR Troubleshooting Guide' (SWRU625) and the 'DP83867ERGZR Debug and Test Guide' (SWRU626) documents. These guides provide step-by-step procedures for identifying and resolving common issues.
  • The DP83867ERGZR has multiple power management options, including power-down modes and dynamic voltage scaling. Refer to the 'Power Management' section in the datasheet for more information on how to optimize power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83867ERGZR Overview

Use the download button to access the DP83867ERGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
