DRV8876PWPR - Texas Instruments

Description: 37-V, 3.5-A brushed DC motor driver with integrated current sensing and current sense output

Download DRV8876PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

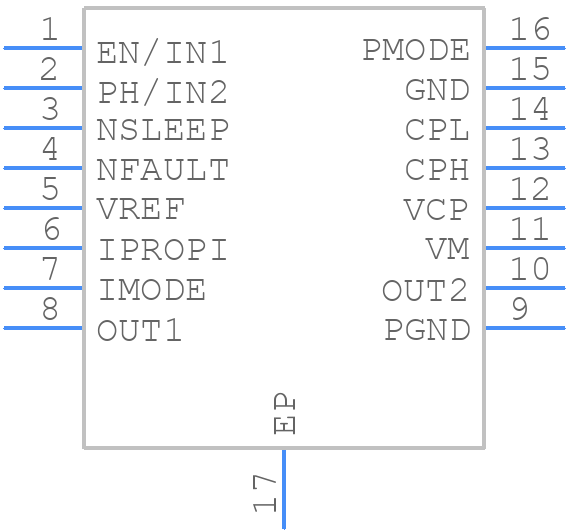

Symbol
DRV8876PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8876PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0016C
click to zoom
3D Models
DRV8876PWPR - Texas Instruments - 3D model - Small Outline Packages - PWP0016C
click to zoom

DRV8876PWPR Details

  • Manufacturer Part Number:

    DRV8876PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-12-21

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    7 mA

  • Supply Voltage-Max (Vsup):

    37 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV8876PWPR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 40V, but it's recommended to keep it below 36V for reliable operation.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A general guideline is to choose a sense resistor value that results in a voltage drop of around 0.5V to 1V at the maximum motor current.
  • The EN (enable) pin is used to enable or disable the driver. When EN is high, the driver is enabled, and when EN is low, the driver is disabled. You can use the EN pin to control the motor's operation, such as turning it on or off, or to implement a shutdown function.
  • The DRV8876PWPR has built-in overcurrent protection, but you can also add external protection components, such as fuses or PTC thermistors, to provide additional protection. You can also implement overcurrent detection and shutdown using the OC (overcurrent) pin.
  • The maximum operating frequency of the DRV8876PWPR is 100 kHz, but it's recommended to operate at a frequency below 50 kHz for optimal performance and to minimize EMI.
