PDRV8876PWPR - Texas Instruments

Description: 37-V, 3.5-A Brushed DC Motor Driver with Integrated Current Sensing and Current Sense Output

Download PDRV8876PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

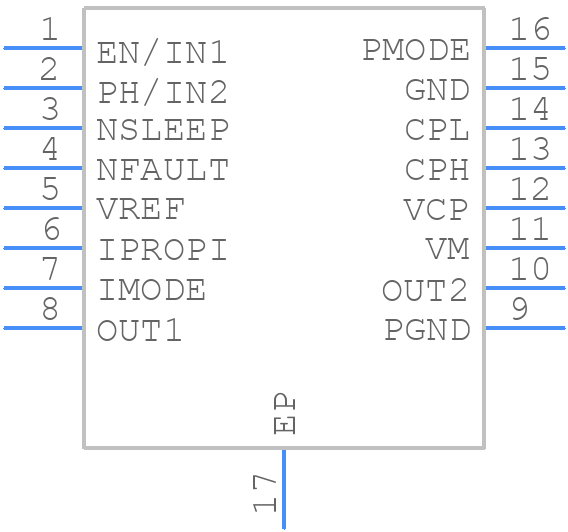

PDRV8876PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PDRV8876PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0016C
click to zoom
3D Models
PDRV8876PWPR - Texas Instruments - 3D model - Small Outline Packages - PWP0016C
click to zoom

PDRV8876PWPR Details

  • Manufacturer Part Number:

    PDRV8876PWPR

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HTSSOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-12-21

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    37 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

PDRV8876PWPR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLVA882, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of external components such as resistors, capacitors, and inductors depends on the specific application and operating conditions. Texas Instruments provides a component selection guide in the datasheet, and also offers online tools such as the WEBENCH Power Designer to help with component selection and simulation.
  • The PDRV8876PWPR has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
  • Texas Instruments provides a troubleshooting guide in the application note SLVA883, which covers common issues and their solutions. Additionally, engineers can use simulation tools such as SPICE models and online forums to debug and resolve issues.
  • Yes, the PDRV8876PWPR is compatible with lead-free soldering processes, and Texas Instruments provides guidance on lead-free soldering in the datasheet and application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PDRV8876PWPR Overview

Use the download button to access the PDRV8876PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PDRV8, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
