SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
7 mA
Supply Voltage-Max (Vsup):
37 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
13.5 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm
PDRV8876QPWPRQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using vias to connect signals to the ground plane.
The PDRV8876QPWPRQ1 has a thermal pad that must be connected to a heat sink or a thermal plane on the PCB. Ensure that the thermal pad is properly soldered and connected to a heat sink or thermal plane to prevent overheating.
The maximum allowed voltage on the input pins of the PDRV8876QPWPRQ1 is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 3.3V to 5V to ensure reliable operation.
The PDRV8876QPWPRQ1 is designed to operate with a 3.3V or 5V supply voltage, but it can be used with other voltage supplies within the recommended operating range of 2.7V to 5.5V. However, the device's performance and functionality may be affected, and it's recommended to consult with Texas Instruments or perform thorough testing to ensure compatibility.
To troubleshoot issues with the PDRV8876QPWPRQ1, start by reviewing the datasheet and application notes to ensure that the device is properly configured and used within its recommended operating conditions. Check the power supply voltage, input signals, and output loads to ensure they are within the recommended ranges. Use oscilloscopes or logic analyzers to debug the device's behavior and identify any issues. If the problem persists, consult with Texas Instruments or a qualified engineer for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PDRV8876QPWPRQ1 Overview

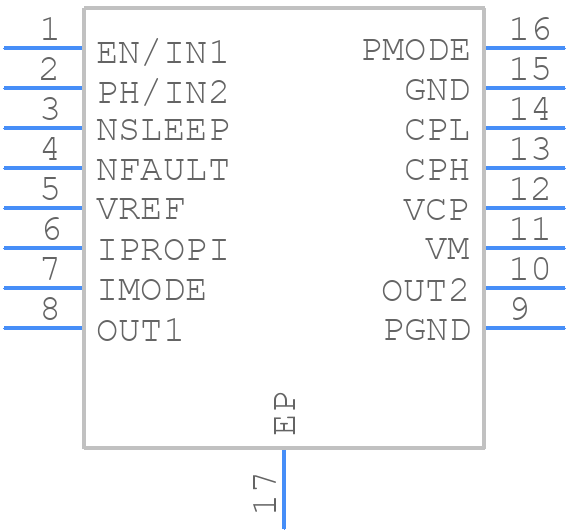

Use the download button to access the PDRV8876QPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PDRV8,
or try a keyword search, such as Motion Control Electronics
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
