Texas Instruments provides a recommended PCB layout guide in the DS90CR216MTD Evaluation Module User's Guide (SLUU444). It includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize signal integrity issues.
The DS90CR216MTD can be configured using the TI's Serializer/Deserializer Configuration Tool (SDCT) software. This tool allows users to customize the device's settings, such as data rate, clock frequency, and output format, to suit their specific application requirements.
The maximum cable length supported by the DS90CR216MTD depends on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends a maximum cable length of 10 meters for FPD-Link III applications and 15 meters for OpenLDI applications.
Texas Instruments provides a troubleshooting guide in the DS90CR216MTD datasheet (SLAS964) that covers common issues and their solutions. Additionally, the TI E2E forum and technical support team can provide further assistance and guidance.
Yes, the DS90CR216MTD is compatible with other FPD-Link III devices from Texas Instruments, such as the DS90CR217MTD and DS90CR219MTD. However, it's essential to ensure that the devices are configured correctly and that the system design meets the requirements of the specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90CR216MTD Overview

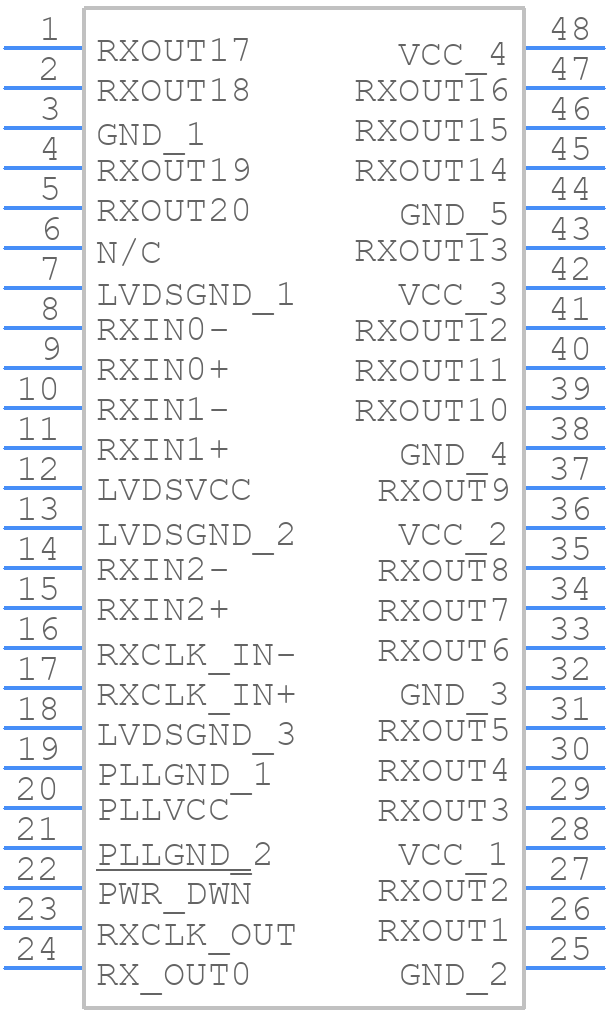

Use the download button to access the DS90CR216MTD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90C,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
