A good PCB layout for the DS90LV804TSQ involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the connectors. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure signal integrity with the DS90LV804TSQ, it's essential to maintain a controlled impedance environment, use differential signaling, and minimize reflections and crosstalk. Additionally, using a common-mode filter and a differential-mode filter can help to reduce electromagnetic interference (EMI).
The maximum cable length supported by the DS90LV804TSQ depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 10 meters at a data rate of 800 Mbps.
To troubleshoot issues with the DS90LV804TSQ, start by checking the power supply voltage, clock frequency, and signal integrity. Use an oscilloscope to verify the signal quality and check for any signs of signal degradation or distortion. Also, ensure that the device is properly configured and that the firmware is up-to-date.
The DS90LV804TSQ is rated for operation in an ambient temperature range of -40°C to 85°C. However, it's essential to ensure that the device is properly heat-sinked and that the PCB is designed to dissipate heat efficiently. Additionally, the device's performance may degrade at higher temperatures, so it's crucial to characterize the device's behavior under high-temperature conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90LV804TSQ Overview

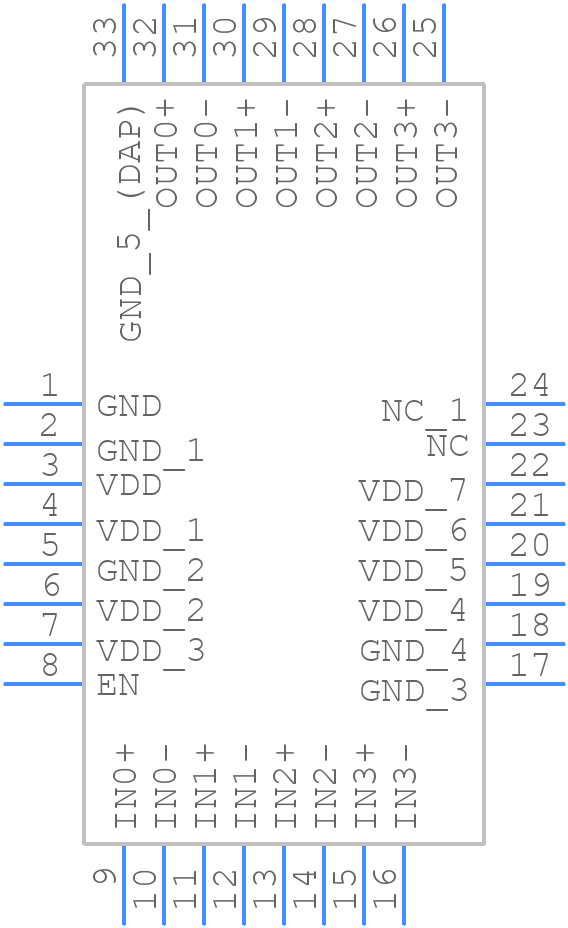

Use the download button to access the DS90LV804TSQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90L,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
