HD3SS3220IRNHR - Texas Instruments

Description: 10Gbps USB 3.1 Type-C 2:1 Mux with DRP Controller

Download HD3SS3220IRNHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

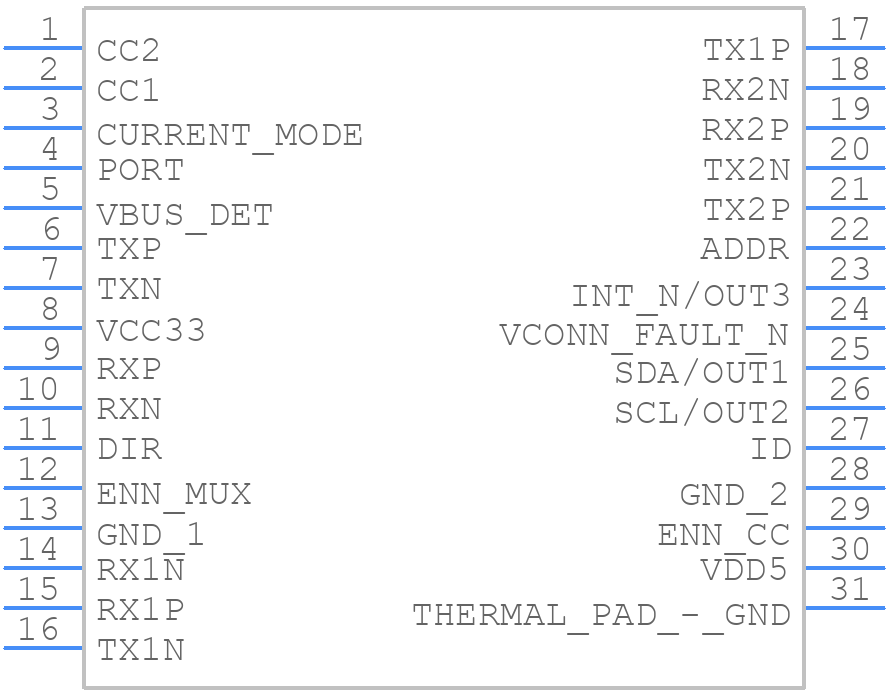

Symbol
HD3SS3220IRNHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HD3SS3220IRNHR - Texas Instruments PCB footprint - Other - Other - RNH0030A (Modified C-Pads)
click to zoom
3D Models
HD3SS3220IRNHR - Texas Instruments - 3D model - Other - RNH0030A (Modified C-Pads)
click to zoom

HD3SS3220IRNHR Details

  • Manufacturer Part Number:

    HD3SS3220IRNHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    I2C

  • Data Transfer Rate-Max:

    1250 MBps

  • JESD-30 Code:

    R-PQCC-N30

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

HD3SS3220IRNHR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the high-speed signals away from the power planes. Additionally, use a common mode filter and a shielded cable to minimize EMI.
  • The HD3SS3220IRNHR requires a 1.8V power supply for the digital core and a 3.3V power supply for the analog circuits. Ensure that the power supplies are sequenced correctly, with the 1.8V supply turning on before the 3.3V supply.
  • The HD3SS3220IRNHR supports cable lengths up to 3 meters. Use a shielded cable with a characteristic impedance of 90 ohms and a bandwidth of at least 10 GHz to ensure signal integrity.
  • The HD3SS3220IRNHR can be configured for different USB modes using the MODE_SEL pins. For example, to configure for USB 3.2 Gen 2, set MODE_SEL[1:0] to 11b. Refer to the datasheet for the complete mode selection table.
  • The HD3SS3220IRNHR has a maximum junction temperature of 125°C. Ensure good airflow around the device, and use a thermal pad or heat sink if necessary. Monitor the device temperature using the THERM pin and take corrective action if the temperature exceeds 100°C.
