HD3SS3220RNHT - Texas Instruments

Description: 10Gbps USB 3.1 Type-C 2:1 Mux with DRP Controller

Download HD3SS3220RNHT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

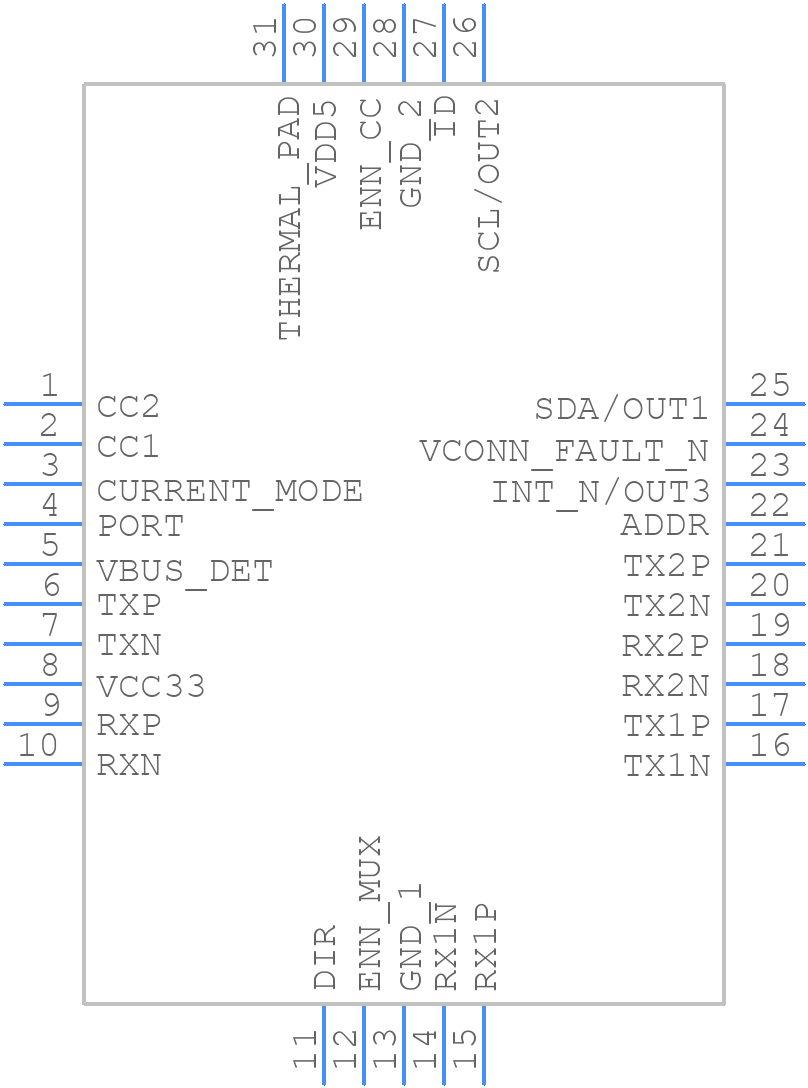

HD3SS3220RNHT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
HD3SS3220RNHT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RNH0030A
click to zoom
3D Models
HD3SS3220RNHT - Texas Instruments - 3D model - Quad Flat No-Lead - RNH0030A
click to zoom

HD3SS3220RNHT Details

  • Manufacturer Part Number:

    HD3SS3220RNHT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQFN-30

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    I2C

  • Data Transfer Rate-Max:

    1250 MBps

  • JESD-30 Code:

    R-PQCC-N30

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.9 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

HD3SS3220RNHT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode filter or a ferrite bead to reduce EMI.
  • The HD3SS3220RNHT requires a 1.8V to 3.3V power supply. Ensure that the power supply is stable and clean. Power sequencing is not critical, but it's recommended to power up the VCC pin first, followed by the VCCIO pin.
  • The maximum cable length supported by the HD3SS3220RNHT is 3 meters. Use a shielded cable with a characteristic impedance of 90 ohms to minimize signal degradation and EMI.
  • Use an oscilloscope to check the signal integrity and voltage levels. Check the power supply and ensure it's stable and clean. Verify the PCB layout and signal routing. Consult the datasheet and application notes for troubleshooting guidelines.
  • The HD3SS3220RNHT has a maximum junction temperature of 125°C. Ensure good airflow around the device and use a heat sink if necessary. Follow the thermal management guidelines in the datasheet to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HD3SS3220RNHT Overview

Use the download button to access the HD3SS3220RNHT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HD3SS, or try a keyword search, such as Bus Controllers
