ISO35TDWR - Texas Instruments

Description: Single Transmitter/Receiver RS-485 16-Pin SOIC T/R

Download ISO35TDWR Model

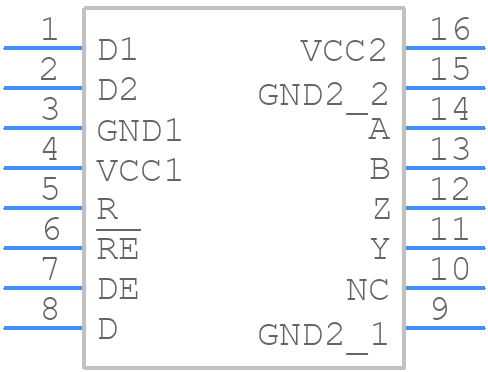

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISO35TDWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin Plastic SOIC
click to zoom
3D Models
ISO35TDWR - Texas Instruments  - 3D model - Small Outline Packages - 16-Pin Plastic SOIC
click to zoom

ISO35TDWR Details

  • Manufacturer Part Number:

    ISO35TDWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia, Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00001 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; EIA-422

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2.4 V

  • Output Characteristics:

    TOTEM-POLE

  • Output Low Current-Max:

    0.008 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    115 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    340 ns

  • Width:

    7.5 mm

ISO35TDWR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10nF capacitor between VCC and GND, and a 100nF capacitor between AVCC and AGND.
  • Use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke on the input lines. Ensure that the PCB layout is designed to minimize radiation and susceptibility.
  • The maximum cable length depends on the data rate and the type of cable used. As a general guideline, use a cable length of up to 10 meters for a data rate of 100 Mbps, and up to 5 meters for a data rate of 1 Gbps.
  • Power up the device in the following sequence: VCC, AVCC, and then the digital inputs. Power down in the reverse sequence. Ensure that the power supplies are stable and within the recommended voltage range before applying digital inputs.
  • Use a heat sink with a thermal resistance of less than 10°C/W. Ensure good airflow around the device, and avoid blocking the airflow with components or cables. Use thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
