Texas Instruments provides a recommended PCB layout in the application note SLUA645, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The ISO7730FQDWQ1 requires a specific power-up and power-down sequencing to prevent damage or malfunction. TI recommends following the power-up sequence: VCC, VISO, and then EN; and the power-down sequence: EN, VISO, and then VCC. This is detailed in the device's datasheet and application notes.
The maximum cable length supported by the ISO7730FQDWQ1 depends on the specific application and the type of cable used. However, as a general guideline, TI recommends keeping the cable length below 10 meters to ensure reliable data transmission and minimize signal degradation.
To implement isolation in a multi-channel design using the ISO7730FQDWQ1, each channel should have its own isolated power supply, and the grounds of each channel should be isolated from each other. TI provides guidance on multi-channel isolation in the application note SLUA646.
The ISO7730FQDWQ1 has a maximum junction temperature of 150°C. To ensure reliable operation, TI recommends implementing thermal management techniques such as heat sinking, thermal vias, and PCB layout optimization to keep the device temperature below 125°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7730FQDWQ1 Overview

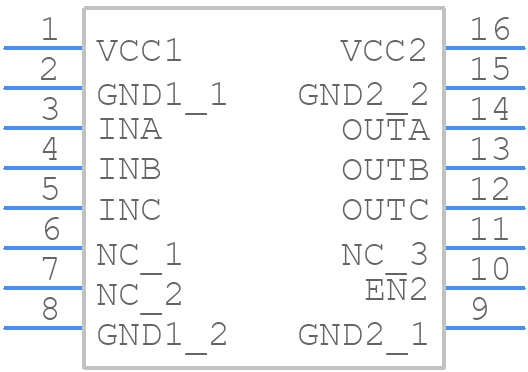

Use the download button to access the ISO7730FQDWQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO77,
or try a keyword search, such as Other Interface ICs
