A good PCB layout for the LM25056APSQ/NOPB should include a solid ground plane, a separate power plane for the input voltage, and a heat sink attached to the exposed pad of the IC. The layout should also minimize the distance between the input capacitors and the IC, and ensure that the output capacitors are placed close to the output pins.
The choice of input and output capacitors depends on the specific requirements of your application. For the LM25056APSQ/NOPB, a low-ESR ceramic capacitor with a value of 10-22uF is recommended for the input capacitor, while a low-ESR ceramic or film capacitor with a value of 22-47uF is recommended for the output capacitor.
The LM25056APSQ/NOPB is rated for operation up to 85°C ambient temperature, but the maximum junction temperature is 150°C. To ensure reliable operation, the device should be operated at a temperature below 85°C, and the thermal design should be such that the junction temperature is kept below 125°C.
To ensure stability, the LM25056APSQ/NOPB requires a minimum output capacitance of 22uF, and the output capacitor should be placed close to the output pins. Additionally, the input voltage should be well-regulated, and the device should be operated within the recommended input voltage range.
The LM25056APSQ/NOPB is rated for operation up to 42V input voltage, but the absolute maximum rating is 50V. Applying a voltage above 42V may cause damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM25056APSQ/NOPB Overview

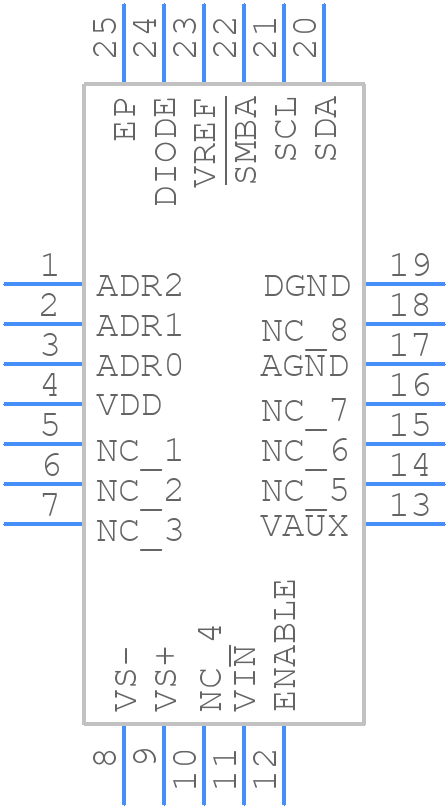

Use the download button to access the LM25056APSQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM250,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
