Texas Instruments provides a recommended PCB layout in the LM25056 datasheet, which includes a thermal pad connected to a copper plane on the PCB to dissipate heat. Additionally, it's recommended to use a 2-ounce copper PCB and to keep the thermal pad away from other components to minimize thermal resistance.
To ensure reliable start-up and operation with a wide input voltage range, it's recommended to follow the input voltage sequencing and ramp-up requirements outlined in the datasheet. Additionally, the input voltage should be filtered to minimize noise and transients, and the device should be operated within the recommended operating conditions.
When selecting the output inductor and capacitor values, consider the output voltage ripple, inductor core loss, and capacitor ESR. The datasheet provides guidelines for selecting these components, including equations for calculating the inductor and capacitor values based on the desired output voltage ripple and switching frequency.
To optimize the compensation network, follow the guidelines in the datasheet for selecting the compensation components, including the type and value of the compensation capacitor and resistor. Additionally, use the provided equations to calculate the compensation values based on the desired crossover frequency and phase margin.
For high-power applications, thermal management is critical to ensure reliable operation. Consider using a heat sink or thermal interface material to reduce the thermal resistance between the device and the PCB. Additionally, ensure good airflow around the device and avoid blocking the airflow with other components or obstacles.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM25056PSQE/NOPB Overview

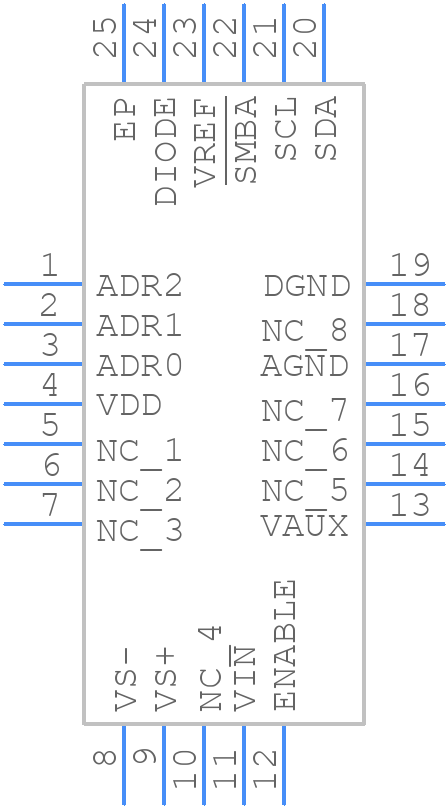

Use the download button to access the LM25056PSQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM250,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
