LM87CIMTX - Texas Instruments

Description: Temp Sensor Digital Serial (2-Wire) 24-Pin TSSOP T/R

Download LM87CIMTX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

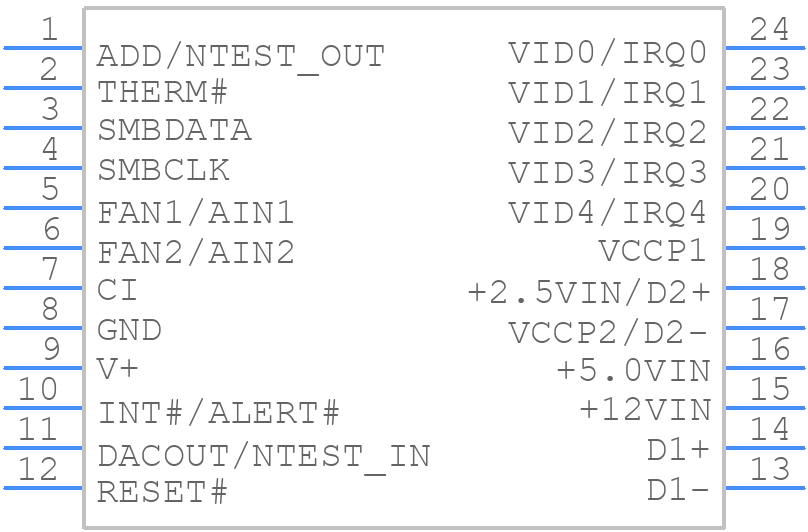

LM87CIMTX - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM87CIMTX - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0024A
click to zoom
3D Models
LM87CIMTX - Texas Instruments - 3D model - Small Outline Packages - PW0024A
click to zoom

LM87CIMTX Details

  • Manufacturer Part Number:

    LM87CIMTX

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e0

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.8 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LM87CIMTX Frequently Asked Questions (FAQs)

  • The LM87CIMTX can operate from -40°C to 125°C, but the accuracy of the temperature measurement may degrade at extreme temperatures.
  • The LM87CIMTX does not require calibration. It is a digital temperature sensor with an internal temperature sensor and ADC, and it provides a calibrated digital output. However, you may need to perform a system-level calibration to account for any thermal gradients or other system-specific effects.
  • The typical current consumption of the LM87CIMTX is around 1.5mA, but it can vary depending on the operating frequency, voltage, and other factors. Refer to the datasheet for more information on power consumption.
  • Yes, the LM87CIMTX can be used for remote temperature sensing applications. It has a digital output that can be transmitted over a long distance using a digital communication protocol such as I2C or SPI.
  • The LM87CIMTX is designed to operate from 2.7V to 5.5V, so it is compatible with 5V systems. However, you should ensure that the voltage supply is within the recommended operating range to ensure accurate temperature measurement.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM87CIMTX Overview

Use the download button to access the LM87CIMTX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM87C, or try a keyword search, such as Power Management Circuits
