MAX1486EUB+ - Analog Devices

Description: MAX1486EUB+, Line Transceiver, RS-485, RS-422 12Mbit/s Differential, 4.75 → 5.25 V, 10-Pin µMAX

Download MAX1486EUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

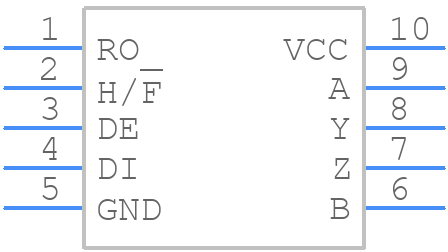

MAX1486EUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1486EUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2-2
click to zoom
3D Models
MAX1486EUB+ - Analog Devices - 3D model - Small Outline Packages - U10+2-2
click to zoom

MAX1486EUB+ Details

  • Manufacturer Part Number:

    MAX1486EUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    MICRO MAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1997-10-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2 V

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    150 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    60 ns

  • Width:

    3 mm

MAX1486EUB+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX1486EUB+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure reliable operation of the MAX1486EUB+ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range (-40°C to +125°C) and derated accordingly.
  • To mitigate EMI and RFI when using the MAX1486EUB+, it's essential to use proper shielding, grounding, and filtering techniques. This includes using a metal shield around the device, connecting the shield to a solid ground plane, and using ferrite beads or chokes to filter out high-frequency noise. Additionally, the device should be placed away from other noise-sensitive components and antennas.
  • To troubleshoot common issues with the MAX1486EUB+, it's essential to follow a systematic approach, starting with a visual inspection of the PCB and device. Check for proper soldering, component placement, and PCB layout. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or noise. Consult the datasheet and application notes for troubleshooting guides and FAQs.
  • When using the MAX1486EUB+ in a redundant or fault-tolerant system, it's essential to consider the implications of device failure or malfunction. This includes designing the system to detect and respond to device failures, using redundant power supplies and voltage regulators, and implementing fault-tolerant architectures. Additionally, the system should be designed to minimize the impact of device failure on overall system performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1486EUB+ Overview

Use the download button to access the MAX1486EUB+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX14, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
