SA56-21GWA - Kingbright

Description: LED Displays & Accessories Single Green 568nm Common Anode 14.2mm (0.56INCH) SINGLE DIGIT NUMERIC DISPLAY

Download SA56-21GWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

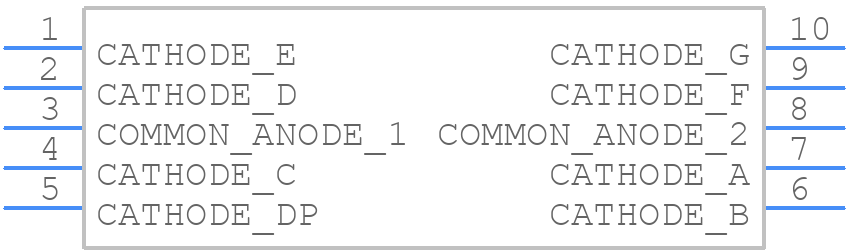

SA56-21GWA - Kingbright - PCB symbol
click to zoom
PCB Footprints
SA56-21GWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10DIP
click to zoom
3D Models
SA56-21GWA - Kingbright - 3D model - Dual-In-Line Sockets - 10DIP
click to zoom

SA56-21GWA Details

  • Manufacturer Part Number:

    SA56-21GWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    565 nm

SA56-21GWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for SA56-21GWA is -40°C to 100°C, as per Kingbright's general guidelines for LED storage.
  • While SA56-21GWA is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures. Additional protection measures like conformal coating or potting may be necessary.
  • The maximum allowable voltage for SA56-21GWA is 5V, as exceeding this voltage may lead to reduced lifespan or even damage to the LED.
  • Kingbright recommends following standard ESD handling procedures, such as using anti-static wrist straps, mats, and packaging materials, to prevent damage to SA56-21GWA during handling and assembly.
  • SA56-21GWA is not designed for high-humidity environments. If used in such conditions, it may lead to reduced lifespan or failure. Kingbright recommends using LEDs with specific humidity ratings for such applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA56-21GWA Overview

Use the download button to access the SA56-21GWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA56-, or try a keyword search, such as LED Displays
