SC56-11EWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)

Download SC56-11EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SC56-11EWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

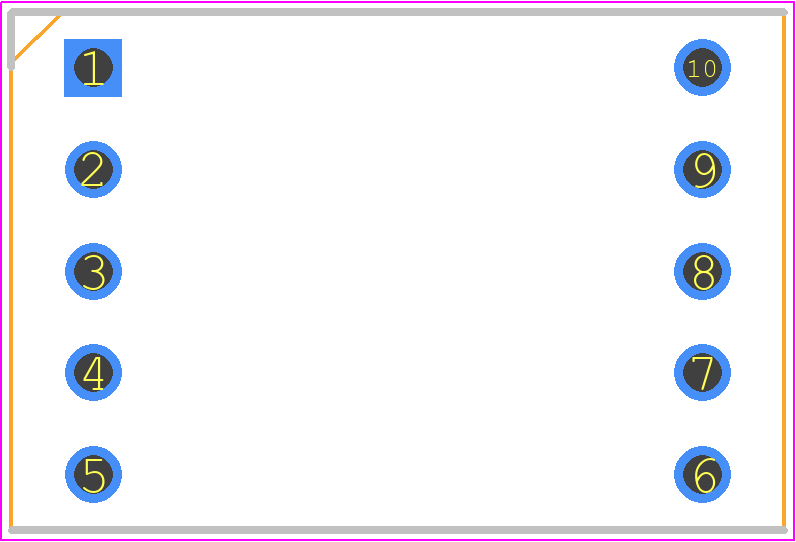

SC56-11EWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - SC56-11EWA
click to zoom
3D Models
SC56-11EWA - Kingbright - 3D model - Dual-In-Line Sockets - SC56-11EWA
click to zoom

SC56-11EWA Details

  • Manufacturer Part Number:

    SC56-11EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    625 nm

SC56-11EWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC56-11EWA is -20°C to 30°C (-4°F to 86°F) to prevent damage to the LEDs.
  • Yes, SC56-11EWA can be used in outdoor applications, but it's recommended to use a suitable enclosure to protect the LEDs from moisture and extreme temperatures.
  • The maximum forward current for SC56-11EWA is 30mA. Exceeding this current may reduce the lifespan of the LEDs or cause damage.
  • Yes, SC56-11EWA is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for soldering temperature and time.
  • The typical viewing angle for SC56-11EWA is 120°, but this may vary depending on the specific application and LED orientation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SC56-11EWA Overview

Use the download button to access the SC56-11EWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SC56-, or try a keyword search, such as LED Displays
