EIA-422; TIA-422; EIA-485; TIA-485; ISO 8482; X3.277
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
6.2 mm
Moisture Sensitivity Level:
1
Number of Functions:
3
Number of Terminals:
16
Operating Temperature-Max:
70 °C
Out Swing-Min:
1 V
Output Characteristics:
TOTEM-POLE
Output Low Current-Max:
0.008 A
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SSOP16,.3
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Receive Delay-Max:
16 ns
Receiver Number of Bits:
3
Seated Height-Max:
2 mm
Supply Current-Max:
20 mA
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Supply Voltage1-Max:
5.25 V
Supply Voltage1-Min:
4.75 V
Supply Voltage1-Nom:
5 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transmit Delay-Max:
12 ns
Width:
5.3 mm
SN75LBC170DBRG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The SN75LBC170DBRG4 has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via or a copper pour connected to a ground plane can be used to dissipate heat. Additionally, the device's thermal resistance can be reduced by using a heat sink or a thermal interface material.
The maximum cable length supported by the SN75LBC170DBRG4 depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at a data rate of 100 Mbps. For longer cable lengths, repeaters or active cables may be required.
Texas Instruments provides a troubleshooting guide in the application note SLVAE03, which covers common issues such as signal integrity problems, power supply issues, and thermal-related issues. Additionally, the device's built-in diagnostic features, such as the fault detection and reporting mechanism, can be used to identify and troubleshoot issues.
The recommended power supply decoupling capacitors for the SN75LBC170DBRG4 are 0.1 μF to 1 μF ceramic capacitors with a voltage rating of 10 V to 25 V, placed as close as possible to the device's power pins. Additionally, a 10 μF to 22 μF bulk capacitor can be used to filter out low-frequency noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75LBC170DBRG4 Overview

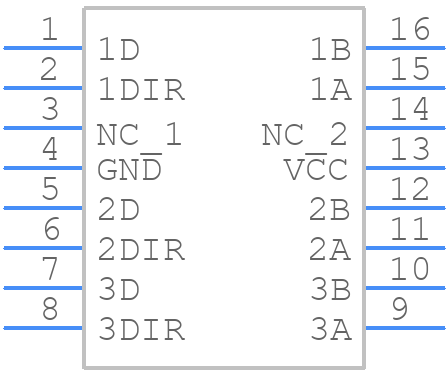

Use the download button to access the SN75LBC170DBRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75L,
or try a keyword search, such as Line Driver or Receivers
